Dispensing

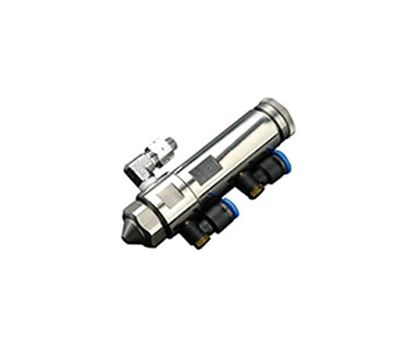

Needle-Off Spray Valve 500NP
Features
- Atomization, suit with big spray patterns.
- The valve only for spray and it controls spraying up to 7mm width at minimum.
- Consistent low pressure, low volume spraying of coatings.
- Nozzle air and fluid flow rates are adjustable.
- No overspray, no misting due to controlled atomizing of fluids into fine droplets.
Specification
| Model | 500NP |
|---|---|
| Maximum Dose | 8 ℓ / min |
| Viscosity Range | 1~ 1,000 cps |
| Operating Air Pressure | 5 kgf / ㎠ |
| Maximum Fluid Charge Pressure | 10kgf / ㎠ |
| Maximum Number of Cycles | 400 times / min |
| Air Operating Port | PT 1/8” |
| Material of Dosing Part | SUS 303 |
| Material of Driving Part | SUS 303 |
| Weight | 285 g |
