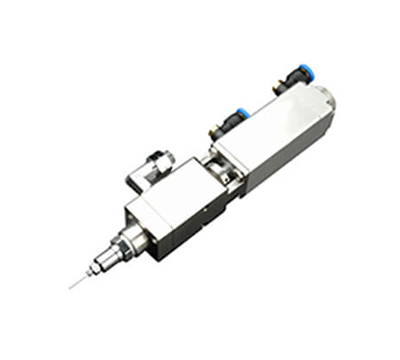

Needle-Off Valve 386NF
Features
- Control dispense via needle, accurate and no dripping.
- High pressure valve of high discharge accuracy, capable to easily fine tune the discharge flow.
Specification
| Model | 386NF |
|---|---|
| Pneumatic Supply | Min. 4 Bars (min. 55 psi) Max. 6 Bars (max. 85 psi) |
| Quality | Filtered 10μ m, oil free, non-condensing |
| Material of Fluid Chamber | SUS 303 |
| Free Flow Orifice | 0.118” diameter (3 mm) |
| Volume | 28 ℓ / min |
| Inlet Thread | 1/4 NPT Female |
| Liquid Input | PT 1/4“ |
| Fluid Pressure | Max. 2175 psi (150 kg / ㎠) |
| Size (mm) | 158 x 30 x 30 |
| Weight | 683 g |
