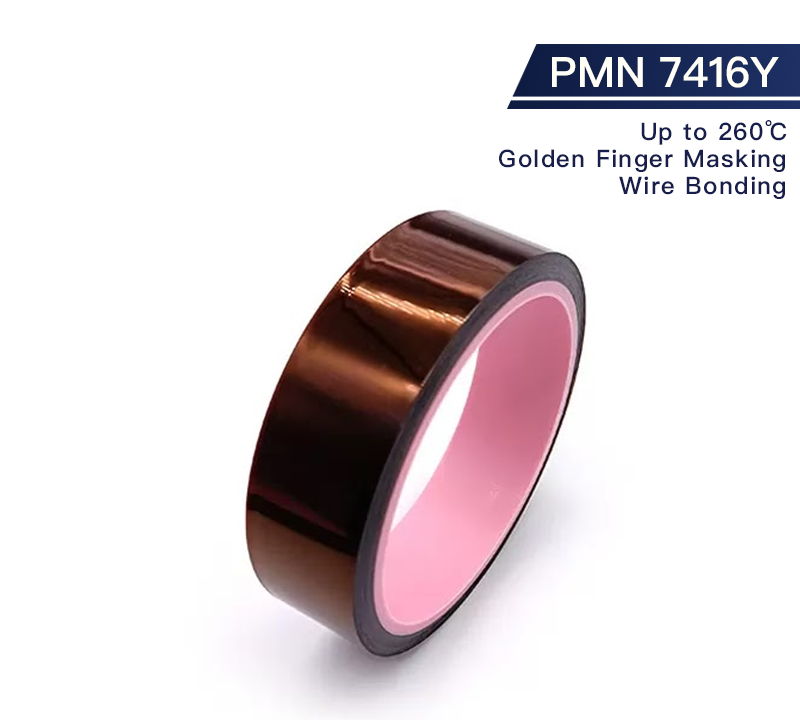

Non-Silicone Heat Resistive Polyimide Tape
- Temperature resistance 260℃ for 5 minutes
- Applicable for golden finger masking, gold wire bonding and molding processes
- No/less adhesive residue on molding and metal substrates
- RoHS Compliant.
PMN 7416Y is a polyimide film backed Acrylic adhesive tape with excellent heat resistance and insulation properties
Application
PMN 7416Y is applicable for gold wire bonding, molding processes. And it is also useful for masking, protection and temporary bonding, including masking for golden finger of Print circuit boards when wave soldering or reflow soldering process
Features
- Resistant high temperature up to 260℃
- Less adhesion build-up after high temperature processes
- No/less adhesive residue on molding and metal substrates
- RoHS Compliant.
Typical Physical Properties and Performance Characteristics
|
Product |
Unit |
Test Values |
|
Backing Thickness |
Mm |
0.025 |
|
Total Tape Thickness |
Mm |
0.035±0.005 |
|
Adhesion to Steel |
N/25mm |
2~3.5 |
|
Tensile Strength at Break |
KN/M |
≥5 |
|
Elongation at Break |
% |
≥45% |
|
Upmost Temperature |
° C |
260*5mins |
|
Surface Resistance |
Ohm |
104~9 |
|
Static Discharge (Removal from roll) |
Voltage |
<100V |
Product Construction/Material Description
|
Part No |
Description |
Length/m |
Width/mm |
|
PMN7416Y0333 |
Heat Resistive Polyimide Tape |
33 |
3 |
|
PMN7416Y0433 |
Heat Resistive Polyimide Tape |
33 |
4 |
|
PMN7416Y0533 |
Heat Resistive Polyimide Tape |
33 |
5 |
|
PMN7416Y0733 |
Heat Resistive Polyimide Tape |
33 |
7 |
|
PMN7416Y0933 |
Heat Resistive Polyimide Tape |
33 |
9 |
|
PMN7416Y1033 |
Heat Resistive Polyimide Tape |
33 |
10 |
|
PMN7416Y1233 |
Heat Resistive Polyimide Tape |
33 |
12 |
|
PMN7416Y1433 |
Heat Resistive Polyimide Tape |
33 |
14 |
|
PMN7416Y1533 |
Heat Resistive Polyimide Tape |
33 |
15 |
|
PMN7416Y1733 |
Heat Resistive Polyimide Tape |
33 |
17 |
|
PMN7416Y1933 |
Heat Resistive Polyimide Tape |
33 |
19 |
|
PMN7416Y2033 |
Heat Resistive Polyimide Tape |
33 |
20 |
|
PMN7416Y2233 |
Heat Resistive Polyimide Tape |
33 |
22 |
|
PMN7416Y2533 |
Heat Resistive Polyimide Tape |
33 |
25 |
|
PMN7416Y3033 |
Heat Resistive Polyimide Tape |
33 |
30 |
|
PMN7416Y4033 |
Heat Resistive Polyimide Tape |
33 |
40 |
|
PMN7416Y5033 |
Heat Resistive Polyimide Tape |
33 |
50 |
