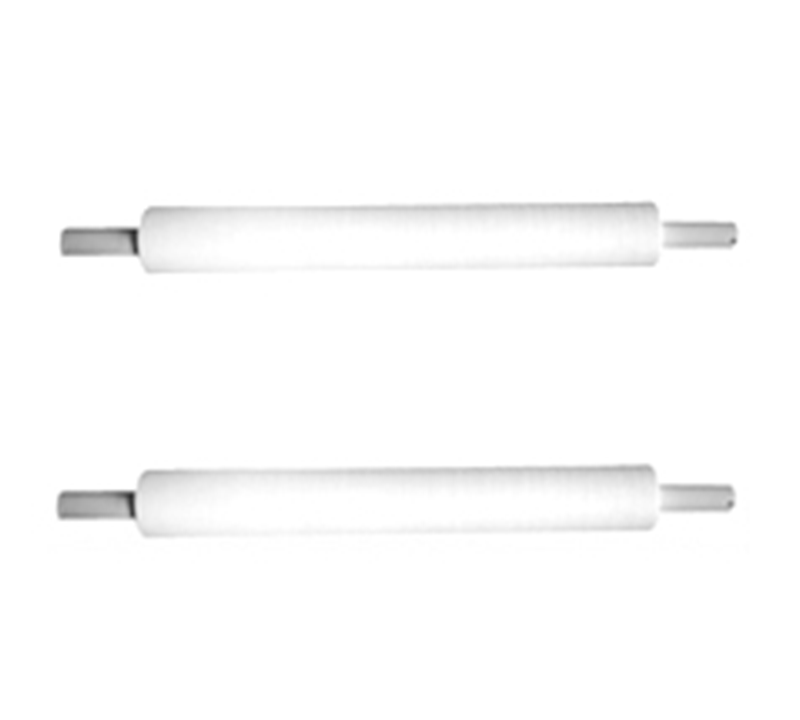

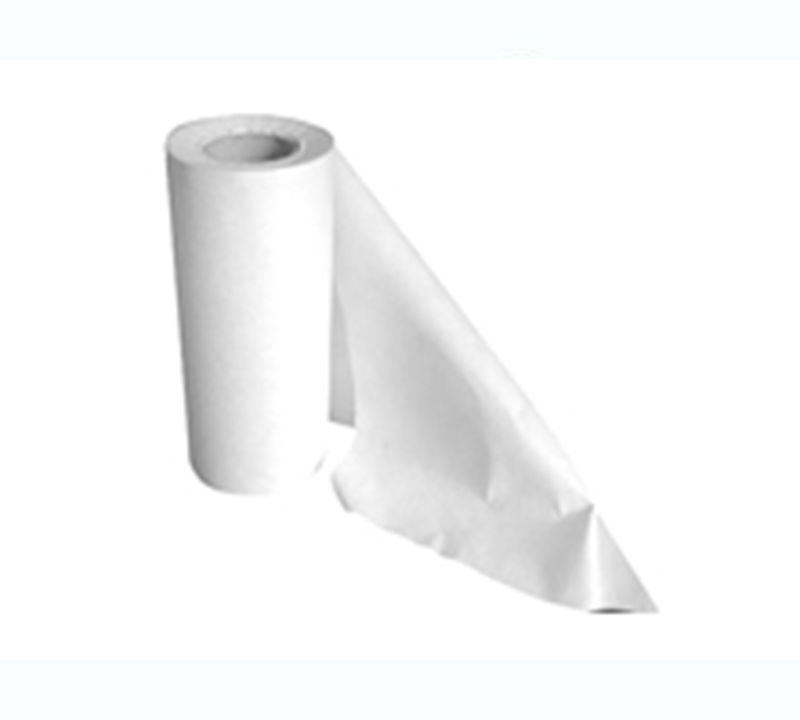

Non Woven Stencil Rolls

Utilizing only the highest quality materials available, chosen specifically to deliver optimum performance and value for each and every application because understencil wiping is so critical in the electronics industry, these non woven fabrics are made using hydroentangling process whereby needle like water jets form a strong non woven fabric without any binders.

add to cart Inquiry Now

Typical Properties

Model	Method	C1	PP
Basic Wt (g/m 2 )	ASTM D1117 SEC17	56/65	40
Features		Plain	Plain
Grab Tensile Breaking Strength MD/XD (N)	ASTM SEC7	106/51	138/64
Elongation % MD/XD	ASTM SEC7	18/78	19/75

Standard Roll Dimension

Machine	Material Width	Core Width	Core ID	Roll Length
MPM	440 mm	457 mm	19.2 mm	12 mtr
DEK	487 mm	530 mm	19.2 mm	9 mtr
DEK	487 mm	530 mm	19.2 mm	7.5 mtr
DEK	400 mm	530 mm	19.2 mm	7.5 mtr
Panasert	410 mm	410 mm	38 mm	33 mtr
Panasert	355 mm	355 mm	38 mm	12 mtr
Panasert	355 mm	355 mm	38 mm	33 mtr
KME	480 mm	480 mm	38 mm	16 mtr
KME	350 mm	350 mm	38 mm	33 mtr
KME	350 mm	350 mm	38 mm	12 mtr
KME	270 mm	270 mm	38 mm	33 mtr
KME	270 mm	270 mm	38 mm	12 mtr
Sanyo	280 mm	280 mm	38 mm	10 mtr
Fuji	495 mm	500 mm	26 mm	10 mtr
Minami	350 mm	370 mm	8 mm	8 mtr
Minami	270 mm	290 mm	8 mm	8 mtr
Minami	270 mm	290 mm	8 mm	4 mtr
Yamaha	420 mm	420 mm	26 mm	24 mtr
Yamaha	355 mm	355 mm	26 mm	11 mtr
Ekra	400 mm	400 mm	14 mm	11 mtr
Ekra	300 mm	300 mm	14 mm	9 mtr
