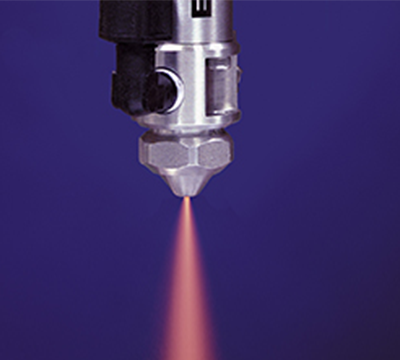

Nordson EFD 781S General Purpose Spray Valve
Part No. 7007031 781S-SS Spray Valve
The 781S Series general purpose spray valve provides exceptional control for reliable, consistent coatings of low- to medium-viscosity fluids using Low Volume Low Pressure (LVLP) technology.
The 781S Series general purpose spray valve provides exceptional control for reliable, consistent coatings of low- to medium-viscosity fluids using Low Volume Low Pressure (LVLP) technology.
It offers adjustable fluid flow, adjustable nozzle air, and post-air cutoff to provide superior spray control without waste, mess, or overspray. This means fluid goes exactly where it's needed, improving consistency with reduced fluid use and cleanup costs.
Fluid can be reliably dispensed in microliter to milliliter amounts, in round patterns with diameters ranging from 4.3 mm (0.17") to 50.8 mm (2.0"), and in fan patterns up to 165.1 mm (6.5") wide.
Features
Compatible Fluids
The complete system includes the 781S spray valve, ValveMate™ 8040 controller, and fluid reservoir. Integrate with an EFD automated dispensing system for even faster throughput.
For more uniform, narrower spray patterns as small as 1 mm (0.04”) wide check out the 781Mini™ Series spray valve. This valve also features a 60% smaller form factor.
Part Numbers
Fluid can be reliably dispensed in microliter to milliliter amounts, in round patterns with diameters ranging from 4.3 mm (0.17") to 50.8 mm (2.0"), and in fan patterns up to 165.1 mm (6.5") wide.
Features
- High transfer efficiency
- Extremely consistent area of coverage
- No clogging, dripping, or drying out
- No overspray, mist, or bounce
- Adjustable nozzle air
Compatible Fluids
- Activators
- Coatings
- Greases
- Liquid fluxes
- Silicones
- Solvents
- Inks
- Oils
The complete system includes the 781S spray valve, ValveMate™ 8040 controller, and fluid reservoir. Integrate with an EFD automated dispensing system for even faster throughput.
For more uniform, narrower spray patterns as small as 1 mm (0.04”) wide check out the 781Mini™ Series spray valve. This valve also features a 60% smaller form factor.
Part Numbers
| 781S General Purpose Spray Valves | ||
| Part # | Description | Specification |
| 7007031 | 781S-SS Spray Valve | Nozzle size is 1.17 mm (0.046") diameter. Round pattern, narrow angle. All metal parts are passivated 303 stainless steel. |
| 7021615 | 781S-SS-46F | Nozzle size is 1.17 mm (0.046") diameter, fan shape. All metal parts are passivated 303 stainless steel. |
| 7021618 | 781S-SS-WF | Same as 781S-SS-46F except wide fan pattern is 2x the width. |
| 7021613 | 781S-SS-28 | Nozzle size is 0.71 mm (0.028") diameter. Round pattern, narrow angle. All metal parts are passivated 303 stainless steel. |
| 7021614 | 781S-SS-28F | Nozzle size is 0.71 mm (.028") diameter, fan shape. All metal parts are passivated 303 stainless steel. |
| 7021611 | 781S-SS-14 | Nozzle size is 0.36 mm (0.014") diameter. Round pattern, narrow angle. All metal parts are passivated 303 stainless steel. |
| 7021612 | 781S-SS-14F | Nozzle size is 0.36 mm (0.014") diameter, fan shape. All metal parts are passivated 303 stainless steel. |
| 7021617 | 781S-SS-WA | Same as 781S-SS except round pattern is 2x as large. |
