Nordson EFD 702 Mini-Diaphragm Valves
Part No.：
7021014 725DA-SS Valve
7021009 725D-SS Valve

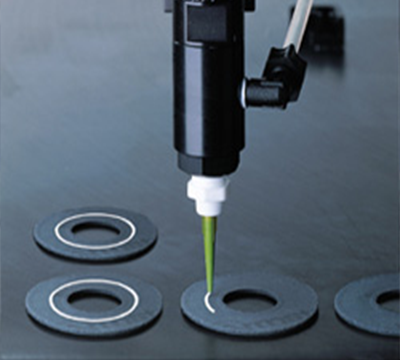

The 725D Series piston valve delivers consistent, precise deposits of viscous fluids. Its unique diaphragm isolates wetted components from the actuator, providing superior wear resistance.
7021014 725DA-SS Valve
7021009 725D-SS Valve
The 725D Series piston valve delivers consistent, precise deposits of viscous fluids. Its unique diaphragm isolates wetted components from the actuator, providing superior wear resistance.
Ideal for use with a variety of medium-to-thick fluids, the 725D pneumatic valve’s rugged construction features an ultra-high molecular weight (UHMW) polyethylene diaphragm that isolates the wetted components from the actuator and provides long wear.
A slight snuff-back at the end of the valve dispensing cycle prevents dripping between shots. All models feature the ability to be mounted in any position.
The 725DA-SS model provides stroke adjustment for both fluid flow and snuff-back control. The 725D-SS model is non-adjustable with fixed stroke travel.
Features
Compatible Fluids
The complete system includes the 725D Series valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. Integrate with an EFD automated dispensing system for even faster throughput.
Part Numbers
A slight snuff-back at the end of the valve dispensing cycle prevents dripping between shots. All models feature the ability to be mounted in any position.
The 725DA-SS model provides stroke adjustment for both fluid flow and snuff-back control. The 725D-SS model is non-adjustable with fixed stroke travel.
Features
- Positive shutoff
- Excellent chemical resistance
- End-of-cycle snuff-back
- Diaphragm life exceeds 50 million cycles
Compatible Fluids
- Brazing pastes
- Epoxies
- Greases
- Paste fluxes
- RTVs
- Sealants
- Solder resists
The complete system includes the 725D Series valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. Integrate with an EFD automated dispensing system for even faster throughput.
Part Numbers
| 725D Piston Valves | ||
| Part # | Description | Specification |
| 7021014 | 725DA-SS Valve | Adjustable piston stroke provides fine-tuning of fluid flow rate and pullback volume. UHMW* diaphragm and sealing head. Fluid body and body cap are passivated 303 stainless steel. Includes fluid inlet fittings #7021499 and #7007038 and dispensing tip kit. |
| 7021009 | 725D-SS Valve | Fluid body and body cap are passivated 303 stainless steel. UHMW* diaphragm and sealing head. Includes fluid inlet fittings #7021499 and #7007038. |
