Dispensing

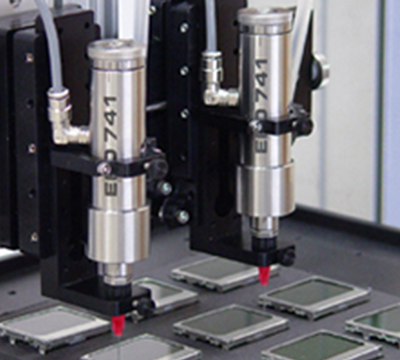

Nordson EFD 741V-SS Valve
Part No.：7007029
The 741V Series needle valve design applies low viscosity assembly fluids with accurate, extremely close repeat deposit control.
The 741V Series needle valve design applies low viscosity assembly fluids with accurate, extremely close repeat deposit control.
During operation, controlled pulsed air acts on the piston to withdraw the needle a preset distance from the needle seat to provide exact, repeatable fluid flow. The stainless steel needle seats in the tip adapter, virtually eliminating dead fluid volume between shots.
The Nordson EFD needle valve features adjustable fluid flow control.
Available Models
741V Series
Actuated by an external solenoid and operates at more than 400 cycles per minute at pressures up to 300 psi (20.7 bar).
741V with BackPack™ Valve Actuator
Actuated by a compact solenoid installed on the valve’s actuating air cylinder, creating a faster response time and less variation in shot size due to plant air supply or air line length fluctuation. Achieves air actuation speeds as short as 5 to 6 milliseconds and cycle rates up to 800 cycles per minute.
Note: The BackPack is also available separately for installation on existing 741V needle valves.
Features
Compatible Fluids
The complete system includes the 741V dispense valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. For even faster throughput, integrate with an EFD automated dispensing system.
Also available, the xQR41 MicroDot™ needle valves provides precise fluid dispensing control for deposits as small as 150 µm diameter. And the xQR41V needle valve delivers exceptional deposit accuracy and repeatability for applications that require larger deposits or a wider range of dispensing tips. Both valves feature an innovative Quick Release clasp that reduces downtime, a 60% smaller form factor, and modular design.
Part Numbers
The Nordson EFD needle valve features adjustable fluid flow control.
Available Models
741V Series
Actuated by an external solenoid and operates at more than 400 cycles per minute at pressures up to 300 psi (20.7 bar).
741V with BackPack™ Valve Actuator
Actuated by a compact solenoid installed on the valve’s actuating air cylinder, creating a faster response time and less variation in shot size due to plant air supply or air line length fluctuation. Achieves air actuation speeds as short as 5 to 6 milliseconds and cycle rates up to 800 cycles per minute.
Note: The BackPack is also available separately for installation on existing 741V needle valves.
Features
- Unaffected by entrapped air in fluid
- Low-maintenance design
- Zero dead fluid volume
- Positive shutoff
Compatible Fluids
- Accelerators
- Marking inks
- Silicone oils
- Solvents
- UV-cure adhesives
The complete system includes the 741V dispense valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. For even faster throughput, integrate with an EFD automated dispensing system.
Also available, the xQR41 MicroDot™ needle valves provides precise fluid dispensing control for deposits as small as 150 µm diameter. And the xQR41V needle valve delivers exceptional deposit accuracy and repeatability for applications that require larger deposits or a wider range of dispensing tips. Both valves feature an innovative Quick Release clasp that reduces downtime, a 60% smaller form factor, and modular design.
Part Numbers
| 741V Needle Valves | ||
| Part # | Description | Specification |
| 7007029 | 741V-SS Valve | Air cylinder and fluid body is passivated 303 stainless steel. Includes fluid inlet fittings #7021499 and #7007038. |
| 7021239 | 741V-SS-TR Valve | Same as 741V-SS but tamper resistant. |
| 7015584 | 741V-SS-BP Valve | Air cylinder and fluid body is passivated 303 stainless steel. Includes fluid inlet fittings and BackPack valve actuator. |
