Dispensing

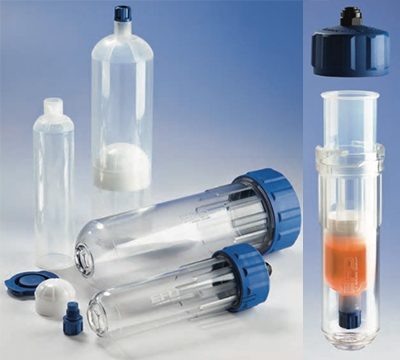

Nordson EFD Cartridge Retainer Systems
Optimum cartridge retainers are molded from high-tensile, clarified resin that permits easy visual monitoring of fluid levels. Large textured ribs provide an ergonomic grip for cap installation.
Retainer caps feature locking tabs that snap securely into detents on the retainer body with an audible click. A push-in air line connector on top of the cap eliminates the need for bayonet connectors.
Retainer caps feature locking tabs that snap securely into detents on the retainer body with an audible click. A push-in air line connector on top of the cap eliminates the need for bayonet connectors.
Nordson EFD Cartridge Retainer Systems
*Note: For retainer systems with 100 psi and 15 psi regulators, see Tanks, Reservoirs, and Pumps.
The retainer cap O-rings are available in three different materials. Please select the one most compatible with your fluid. Standard O-ring material is Buna.
| RETAINER SYSTEMS | |||
|---|---|---|---|
| Retainer Systems* | Retainer Bodies | ||
| Part # | Size | Part # | Size |
| 7012430 | 2.5 fl oz (75 ml) | 7013857 | 2.5 fl oz (75 ml) |
| 7012433 | 6 fl oz (180 ml) | 7013858 | 6 fl oz (180 ml) |
| 7012436 | 12 fl oz (360 ml) | 7013859 | 12 fl oz (360 ml) |
| 7012439 | 20 fl oz (600 ml) | 7013860 | 20 fl oz (600 ml) |
| 7013899 | 32 fl oz (960 ml) | 7013900 | 32 fl oz (960 ml) |
| Retainer Cap Assemblies | |||
| Part # | Size | ||
| 7012531 | 2.5, 6, 12 fl oz (75, 180, 360 ml) | ||
| 7012532 | 20, 32 fl oz (600, 960 ml) | ||
| Retainer Cap O-ring Kits (2/pkg.) | |||
| Part # | Material Si | Size | |
| 7014373 | Buna | 2.5, 6, 12 fl oz (75, 180, 360 ml) | |
| 7026914 | EPR | 2.5, 6, 12 fl oz (75, 180, 360 ml) | |
| 7026915 | Viton | 2.5, 6, 12 fl oz (75, 180, 360 ml) | |
| 7014372 | Buna | 20, 32 fl oz (600, 960 ml) | |
| 7026916 | EPR | 20, 32 fl oz (600, 960 ml) | |
| 7026917 | Viton | 20, 32 fl oz (600, 960 ml) | |
*Note: For retainer systems with 100 psi and 15 psi regulators, see Tanks, Reservoirs, and Pumps.
The retainer cap O-rings are available in three different materials. Please select the one most compatible with your fluid. Standard O-ring material is Buna.
