Nordson EFD Dial-A-Dose Industrial Syringes
Nordson EFD offers a comprehensive selection of syringes used for fluid packagers in the electronics rework, industrial, dental, and do-it-yourself markets. Dial-A-Dose® syringes are an ideal packaging system for controlled placement of adhesives
and sealants. For multi deposit use, EFD Dial-A-Dose syringes offer an innovative, customizable solution to tailor deposits based on application size and other requirements.
and sealants. For multi deposit use, EFD Dial-A-Dose syringes offer an innovative, customizable solution to tailor deposits based on application size and other requirements.

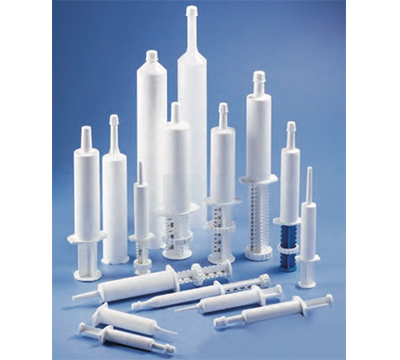

Nordson EFD Dial-A-Dose Industrial Syringes
Features and Benefits
Features and Benefits
- Range of sizes, colors, and nozzles
- Self-venting barrels with “lead-in” aid for easy fill
- Single and multi deposit syringes allow manufacturers to make the deposit, cap the syringe, and save for next deposit
- Locking ring ensures exact amount is dispensed
Dial-A-Dose plunger
Two-piece plunger
One-piece plunger
| DIAL-A-DOSE INDUSTRIAL SYRINGES | |||||||
|---|---|---|---|---|---|---|---|
| Syringes include integrated molded nozzle. Order plungers and caps separately. White caps molded in LDPE. | |||||||
| Nozzle Style: Short Taper 1/16" ID x 7/32" Length | |||||||
| Syringe | Size | Material | Color | Cap | Multi-Dose Plunger Dial-A-Dose |
Single-Dose Plunger Options | |
| One-Piece | Two-Piece | ||||||
| 7660308 | 15cc | PE | White | 7660192 | 7660343 | 7660329 | 7660333 |
| Nozzle Style: Thin Taper 1/16" ID x 1-1/18" Length | |||||||
| 7660277 | 6cc | PE | White | 7660194 | - | 7660292 | - |
| 7022846 | 15cc | PE | White | 7660194 | 7660343 | 7660329 | 7660333 |
| 7026529 | 30cc | PE | White | 7660194 | - | 7660380 | - |
| Nozzle Style: Luer Lock 1/16" ID x 1/4" Length | |||||||
| 7660228 | 3cc | PP | Clear | 7660246 | - | 7660263 | - |
| 7660392 | 32cc | PP | Amber | 7660246 | 7660452 | 7660427 | 7660436 |
| DIAL-A-DOSE INDUSTRIAL SYRINGES | |||||||
|---|---|---|---|---|---|---|---|
| Nozzle Style: Standard 3/16" ID x 1-13/32" Length | |||||||
| Syringe | Size | Material | Color | Cap | Multi-Dose Plunger Dial-A-Dose |
Single-Dose Plunger Options | |
| One-Piece | Two-Piece | ||||||
| 7660279 | 6cc | PE | White | 7660198 | 7661311 | - | - |
| 7660313 | 15cc | PE | White | 7660198 | 7660343 | 7660329 | 7660333 |
| 7660368 | 30cc | PE | Clear | 7660198 | - | 7660380 | - |
| 7660399 | 32cc | PE | White | 7660198 | 7660452 | 7660427 | 7660436 |
| 7660485 | 36cc | PE | White | 7660198 | 7660494 | - | 7660492 |
| 7660508 | 60cc | PE | White | 7660198 | 7660538 | - | 7660528 |
| 7660551 | 80cc | PE | White | 7660198 | 7660557 | - | 7660938 |
| 7660571 | 100cc | PP | Clear | 7660198 | 7660580 | - | 7660427 |
| Nozzle Style: Luer Slip 3/32" ID x 11/32" Length | |||||||
| 7660229 | 3cc | PE | White | 7660201 | - | 7660263 | - |
| Nozzle Style: Medium 9/32" ID x 1-13/32" Length | |||||||
| 7660419 | 32cc | PE | White | 7660207 | 7660452 | 7660427 | 7660436 |
| 7660482 | 34cc | PE | White | 7660207 | 7660452 | 7660427 | 7660436 |
| 7660486 | 36cc | PE | White | 7660207 | 7660494 | - | 7660492 |
| Nozzle Style: Straight 3/32" ID x 1-1/8" Length | |||||||
| 7660322 | 15cc | PE | Clear | 7660201 | 7660343 | 7660329 | 7660333 |
| Nozzle Style: Cone 3/32" ID x 1-1/2" Length | |||||||
| 7660371 | 30cc | PE | White | 7660201 | - | 7660380 | - |
| Nozzle Style: Medium 1/4" ID x 1-23/64" Length | |||||||
| 7660517 | 60cc | PE | White | 7660207 | 7660538 | - | 7660528 |
| 7660552 | 80cc | PE | White | 7660207 | 7660557 | - | 7660938 |
| Nozzle Style: Wide 13/32" ID x 1-5/16" Length | |||||||
| 7660522 | 60cc | PE | White | 7660191 | 7660538 | - | 7660528 |
| 7660553 | 80cc | PE | White | 7660191 | 7660557 | - | 7660938 |
| 7660572 | 100cc | PE | White | 7660191 | 7660580 | - | 7660581 |
| Nozzle Style: Luer Slip Variant 1/32" ID x 21/32" Length | |||||||
| 7660232 | 3cc | PE | White | 7660201 | - | 7660257 | - |
| Nozzle Style: Wide Taper 1/4" ID x 7/8" Length | |||||||
| 7660488 | 36cc | PE | White | 7660210 | 7660494 | - | 7660492 |
| Nozzle Style: Luer Slip Variant 1/16" ID x 21/32" Length | |||||||
| 7660239 | 3cc | PE | White | 7660201 | - | 7660257 | - |
