Dispensing
Nordson EFD PTFE-coated Tips
Part No.：7018243 7018290 7018326 7018359
Optimum® PTFE-coated dispense tips control wicking to stop dripping. By providing fast, clean cutoff they increase productivity and reduce material waste.
Optimum® PTFE-coated dispense tips control wicking to stop dripping. By providing fast, clean cutoff they increase productivity and reduce material waste.
PTFE-coated Tips
Optimum® PTFE-coated dispense tips control wicking to stop dripping. By providing fast, clean cutoff they increase productivity and reduce material waste.
Ideal for particle-filled material and optical media applications, these tips also eliminate potential clogging for more accurate dispensing.
The unique SafetyLok™ hub thread ensures safe, secure attachment to the syringe barrel. Each hub is designed with flush mating of the hub to the cutoff for smooth fluid flow and to prevent trapped air. Each hub is also manufactured and quality-tested to be free of molding flash – bits of plastic that can block fluid flow and cause inconsistent deposits.
All Optimum dispensing tips are manufactured in the USA in silicone-free facilities to prevent fluid contamination and are certified for industrial use.

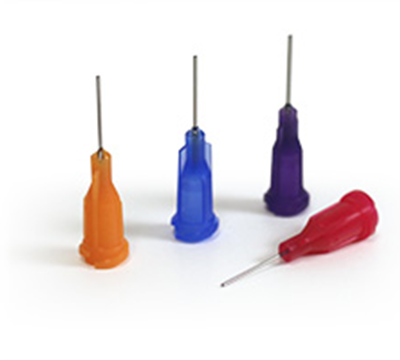

Tip hubs are color coded by size to help identify the gauge or internal diameter. Tips are also packaged in clear boxes for easy inventory control – with lot numbers, part numbers, and other information clearly labeled for greater process control and traceability.
Part Numbers
Controls wicking to stop drips in optical media applications.
Optimum® PTFE-coated dispense tips control wicking to stop dripping. By providing fast, clean cutoff they increase productivity and reduce material waste.
Ideal for particle-filled material and optical media applications, these tips also eliminate potential clogging for more accurate dispensing.
The unique SafetyLok™ hub thread ensures safe, secure attachment to the syringe barrel. Each hub is designed with flush mating of the hub to the cutoff for smooth fluid flow and to prevent trapped air. Each hub is also manufactured and quality-tested to be free of molding flash – bits of plastic that can block fluid flow and cause inconsistent deposits.
All Optimum dispensing tips are manufactured in the USA in silicone-free facilities to prevent fluid contamination and are certified for industrial use.
Tip hubs are color coded by size to help identify the gauge or internal diameter. Tips are also packaged in clear boxes for easy inventory control – with lot numbers, part numbers, and other information clearly labeled for greater process control and traceability.
Part Numbers
| PTFE-coated Tips | |||||
| 12.7 mm (0.50") |
Gauge | Color | ID | OD | Qty/Box |
| 7018243 | 21 |  Purple |
0.51 mm 0.020" |
0.84 mm 0.033" |
20 |
| 7018290 | 22 |  Blue |
0.41 mm 0.016" |
0.74 mm 0.029" |
20 |
| 7018326 | 23 |  Orange |
0.33 mm 0.013" |
0.66 mm 0.026" |
20 |
| 7018359 | 25 |  Red |
0.25 mm 0.010" |
0.53 mm 0.021" |
20 |
