Nordson EFD Optimum Syringe Barrels
EFD produces the highest quality syringe barrels and pistons in the industry. Syringe barrels and pistons are produced in our own silicone-free facilities, where they are subjected to stringent quality control inspections throughout the entire manufacturing process.
Nordson EFD Optimum Syringe Barrels
Features and Benefits
Features and Benefits
- Precision fit between syringe and piston ensures consistent fluid deposits
- Wiper piston improves fluid control, keeps fluids from dripping and eliminates waste by wiping the syringe wall clean
- Wide variety of styles and sizes
- Package labels include lot numbers for process control and traceability

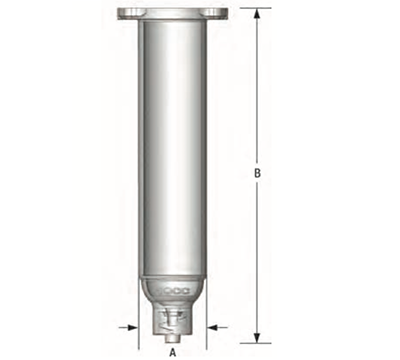

Note: This data is typical and does not constitute a specification.BARREL DIMENSIONS Size A B 3cc 11.1 mm (0.44") 73.0 mm (2.88") 5cc 14.3 mm (0.56") 68.3 mm (2.69") 10cc 19.1 mm (0.75") 88.9 mm (3.50") 30cc 25.4 mm (1.0") 115.9 mm (4.56") 55cc 25.4 mm (1.0") 173.0 mm (6.81")

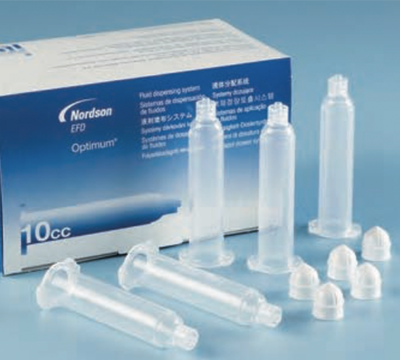

| SYRINGE BARREL & PISTON SETS | ||||||
|---|---|---|---|---|---|---|
| ach box contains one resealable bag of syringes and SmoothFlowTM pistons. Dust-free packaging. |
||||||
| Size | MOST FLUIDS Clear Barrels White Pistons |
UV/Light Block* Amber Barrels White Pistons |
Opaque Black Barrels White Pistons |
Clear Barrels Blue Pistons** |
Clear Barrels Clear Pistons |
QTY |
| 3cc | 7012074 | 7012085 | 7012091 | 7012075 | n/a | (50) |
| 5cc | 7012096 | 7012103 | 7012109 | n/a | n/a | (40) |
| 10cc | 7012114 | 7012126 | 7012130 | 7015118 | 7360577 | (30) |
| 30cc | 7012136 | 7012145 | 7012149 | 7015116 | 7360580 | (20) |
| 55cc | 7012153 | 7012160 | 7012164 | n/a | 7360583 | (15) |

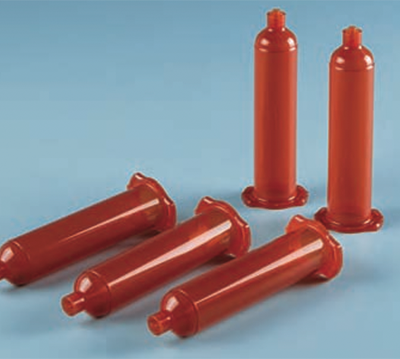

| Sets are available in clear for most fluids; transparent amber for UV- and light-sensitive materials (less than12% visible light from 550 nm or less); and opaque black for complete light blockage. **Blue LV Barrier sets include tip caps and are designed for dispensing cyanoacrylates and very low viscosity fluids. |
||||||
| SYRINGE BARRELS | |||||
|---|---|---|---|---|---|
| Each box contains one resealable ESD-safe bag of syringes. Dust-free packaging. | |||||
| Size | MOST FLUIDS Clear Barrels |
UV/Light Block* Amber Barrels |
Opaque Black Barrels |
ESD-Safe Black Barrels |
QTY |
| 3cc | 7012072 | 7012083 | 7012089 | 7362856 | (50) |
| 5cc | 7012094 | 7012101 | 7012107 | 7362858 | (40) |
| 10cc | 7012112 | 7012122 | 7012128 | 7362860 | (30) |
| 30cc | 7012134 | 7012143 | 7012147 | 7362862 | (25) |
| 55cc | 7012155 | 7012158 | 7012162 | 7362864 | (15) |
| Note: 30cc and 55cc syringe barrels accept the same size barrel pistons, end Order pistons separately. *Transparent amber for UV- and light-sensitive materials (less than12% visible light from 550 nm or less); and opaque black for complete light blockage. |
|||||
