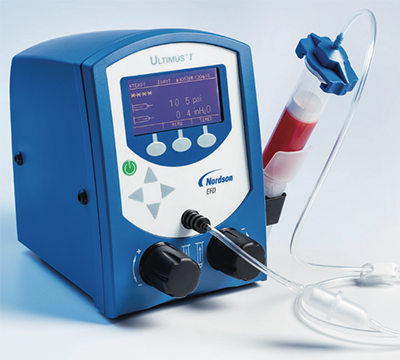

Nordson EFD Ultimus I-II High Precision Dispensers
A higher level of simple, reliable benchtop fluid dispensing control
Featuring simultaneous digital display of all dispenser settings and time adjustment as fine as 0.0001 seconds, UltimusTM I-II dispensers bring exceptional process control to medical device, electronics, and other critical dispensing processes.
The Ultimus I dispenser has a 0-100 psi (0-7 bar) pressure regulator that is suitable for all fluids. The Ultimus II dispenser has 0-15 psi (0-1 bar) pressure regulator that provides greater control when dispensing thin fluids.
Both units feature constant-bleed air pressure regulation, which makes adjusting the pressure setting more intuitive. Highly accurate regulation of air pressure makes the Ultimus I-II reliable and easy to use.
Featuring simultaneous digital display of all dispenser settings and time adjustment as fine as 0.0001 seconds, UltimusTM I-II dispensers bring exceptional process control to medical device, electronics, and other critical dispensing processes.
The Ultimus I dispenser has a 0-100 psi (0-7 bar) pressure regulator that is suitable for all fluids. The Ultimus II dispenser has 0-15 psi (0-1 bar) pressure regulator that provides greater control when dispensing thin fluids.
Both units feature constant-bleed air pressure regulation, which makes adjusting the pressure setting more intuitive. Highly accurate regulation of air pressure makes the Ultimus I-II reliable and easy to use.
Nordson EFD Ultimus I-II High Precision Dispensers
Features
Specifications
Note: Specifications and technical details are subject to engineering change without prior notification.
Features
- All-digital, multi-function display • 16 memory settings
- 4-decimal time setting
- Operator lockout of time setting • Multilingual display options
- Universal power supply
- Digital display of all dispensing parameters for better process control
- Save up to 16 dispensing programs to easily transition from one type of application to the next
- Time setting adjustments ≥ 0.0001 for a higher level of precision
- Operator lockout to help maintain a consistent process
- Universal power supply and multiple language display options for worldwide use and support
Dispensing adhesive onto medical components with HPxTM tool.
Dispensing flux onto electronic components.
| Part # | Description |
|---|---|
| 7017041 | Ultimus I dispenser, 0-100 psi (0-7 bar) |
| 7012584 | Ultimus I dispenser, 0-100 psi (0-7 bar) calibrated to EFD specifications based on NIST standards |
| 7002003 | Ultimus II dispenser, 0-15 psi (0-1 bar) |
| 7012586 | Ultimus II dispenser, 0-15 psi (0-1 bar) calibrated to EFD specifications based on NIST standards |
Specifications
| Item | Specification |
|---|---|
| Cabinet size | 14.3W x 18.1H x 17.3D cm (5.63W x 7.12H x 6.82D") |
| Weight | 2.3 kg (5.0 lb) |
| Power adapter | AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6A DC output: 24 VDC @ 1.04A |
| End-of-cycle feedback circuits | 5–24 VDC; 100mA maximum |
| Initiate circuits | Foot pedal, finger switch, or 5–24 VDC signal |
| Initiate circuits | Exceeds 600 cycles per minute |
| Time | Range: Programmable from 0.0001–999.9999 seconds Accuracy: Within ±0.05% of the selected time setting Repeatability: Less than 16 μsec at any time setting |
| Pressure readout accuracy | Ultimus I: ±2.0 psi, 0–7.0 bar (0–100 psi) Ultimus II: ±0.3 psi, 0–1.0 bar (0–15 psi) |
| Vacuum readout accuracy | ±2.0 in H2O, 0–18 in H2O |
| Ambient operating conditions | Temperature: 5–45° C (41–113° F) Humidity: 85% RH at 30° C non-condensing Height above sea level: 2000 m maximum (6,562 ft) |
| Approvals | CE, RoHS, WEEE, UL, and China RoHS compliant Meets or exceeds CE and CSA requirements |
