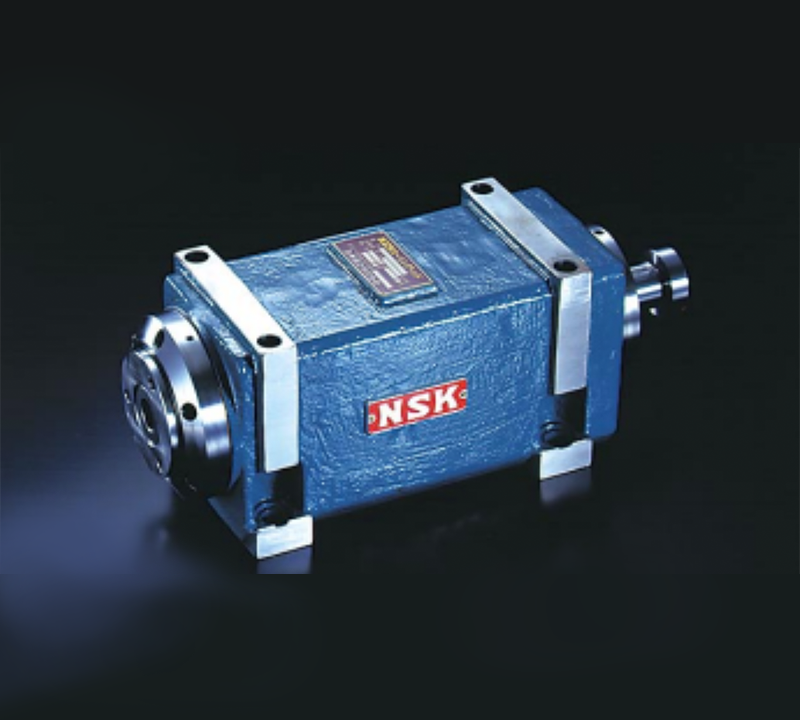

NSK Cartridge Spindle For NC Lathes

Types and Features

• SH3000NW (SH3060NW, SH3080NW) Type
• Most suited to low speed, heavy cutting

This type uses two tapered roller bearings and one angular contact ball bearing.  The preload of the tapered roller bearings is adjusted by rotating the round nut mounted on the rear of the spindle. The angular contact ball bearing is spring preloaded, thus the main spindle shaft is supported at 3 points.


• JSH 1000NW (JSH 1045NW, JSH 1060NW, JSH 1080NW) Type
• Most suited to light-load, high-speed cutting

This type uses two ultra-precise angular contact ball bearings on each end.  The preload is adjusted by inserting spacers between the bearings.

	Front bearing shaft diameter	Max. rot. speed (min−1)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	U	V	W	X	Y	Z	Boring head weight (approx.) (kg)
JSH1045NW	45	8000	465	35	17	162	80	102	110	8	3 − M10 × 1.5 Tap 18 Depth	32	25	M16 × 1.5	40	14	Parallel key 5 × 5 × 25	108	14	68	9	20	136	36	16.5	25	43
JSH1060NW	60	000	475	40	22	187	80	102	150	20	3 − M10 × 1.5 Tap 18 Depth	43	40	M30 × 1.5	58	19	Parallel key 7 × 7 × 30	140	15	85	9	25	170	45	20	30	70
JSH1080NW	80	3000	480	45	22	292	118	142	185	26	6 − M10 × 1.5 Tap 18 Depth	62	55	M45 × 1.5	74	19	Parallel key 10 × 8 × 35	165	17.5	100	9	30	200	50	20	30	100

	Front bearing shaft diameter	Max. rot. speed (min−1)	A	B	D	E	F	G	J	K	L	M	P	Q	R	S	T	V	W	C	Y	X	Boring head weight (approx.) (kg)
SH3060NW	60	2000	475	18	9	195	102	150	3 − M10 × 1.5 Tap 18 Depth PCD80	45	25	12	120	50	125	17.5	80	JIS Type A 3 line	160	30	20	4	70
SH3080NW	80	1500	480	21	9	210	142	186	6 − M12 × 1.5 Tap 18 Depth PCD118	50	30	2	150	65	165	17.5	100	JIS Type A 4 line	200	30	20	5	100
