| Item | CPU Unit Specification | ||||||
| CPU Units with 10 I/O points (relay outputs) | CPU Units with 10 I/O points
(transistor outputs) |
CPU Units with 20 I/O points (relay outputs) | CPU Units with 20 I/O points
(transistor outputs) |
CPU Units with 32 I/O points
(transistor outputs) |

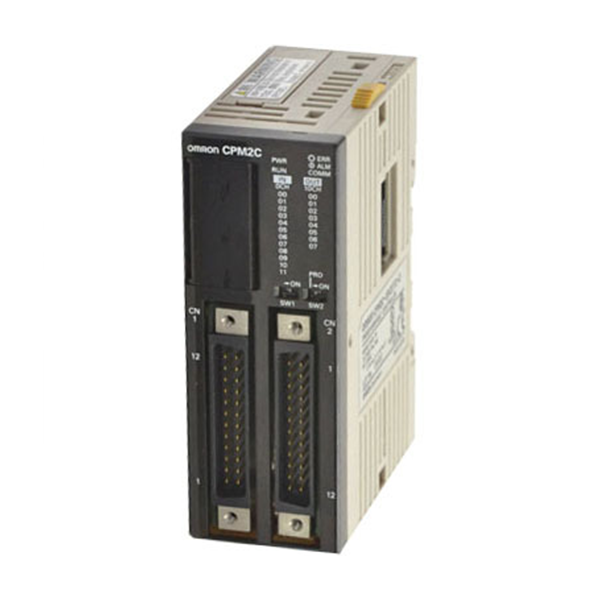

CPM2C-S CPU Unit
with 10 I/O points (transistor outputs) |
||
| Supply voltage | 24 V DC | ||||||
| Operating voltage range | 20.4 to 26.4 V DC | ||||||
| Power consumption (Add Ex- pansion Unit consumption from following tables.) | 4 W | 3 W | 4 W | 3 W | 3 W | 3 W | |
| Inrush current | 25 A max. | ||||||
| Insulation resistance | 20 MΩ min. (at 500 V DC) between isolated circuits | ||||||
| Dielectric strength | 2,300 V AC for 1 min (between isolated circuits) | ||||||
| Noise immunity | Conforms to IEC61000-4-4, 2 kV (power lines) | ||||||
| Vibration resistance | Conforming to IEC 60068-2-6, JIS C0040: 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z direc- tions for 80 minutes each (Time coefficient; 8 minutes ´ coefficient factor 10 = total time 80 minutes) | ||||||
| Shock resistance | Conforming to IEC 60068-2-27, JIS C0041: 147 m/s2 three times each in X, Y, and Z directions | ||||||
| Ambient temperature | Operating: 0° to 55° C
Storage: –20° to 75° C (except for the battery) |
||||||
| Humidity | 10% to 90% (with no condensation) | ||||||
| Atmosphere | Must be free from corrosive gas | ||||||
| I/O interface | Terminal block | Connector | Terminal block | Connector | |||
| Power interrupt time | 2 ms min. | ||||||
| Weight | 200 g max. | 200 g max. | 250 g max. | 200 g max. | 200 g max. | 160 g max. | |
| Expansion I/O Unit with 10 I/O points (relay outputs) | 200 g max. | ||||||
| Expansion I/O Unit with 20 I/O points (relay outputs) | 200 g max. | ||||||
| Expansion I/O Units with 24 I/O points (transistor outputs) | 200 g max. | ||||||
| Expansion I/O Unit with 32 I/O points (transistor outputs) | 200 g max. | ||||||
| Expansion I/O Unit with 8 input points | 150 g max. | ||||||
| Expansion I/O Unit with 16 input points | 150 g max. | ||||||
| Expansion I/O Units with 8 output points (transistor outputs) | 150 g max. | ||||||
| Expansion I/O Units with 16 output points (transistor outputs) | 150 g max. | ||||||
| Expansion I/O Unit with 8 output points (relay outputs) | 200 g max. | ||||||
| Simple Communications Unit | 150 g max. | ||||||
| Peripheral/RS232C Adapter Unit | 150 g max. | ||||||
| RS422/RS232C Adapter Unit | 150 g max. | ||||||
| AC Power Supply Unit | 250 g max. | ||||||
| Analog I/O Unit | 200 g max. | ||||||
| Temperature Sensor Unit | 200 g max. | ||||||
| CompoBus/S I/O Link Unit | 150 g max. | ||||||
