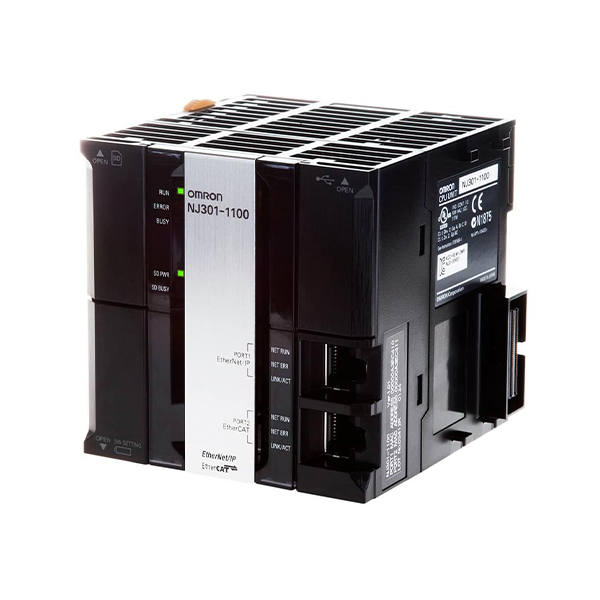

Omron Machine Automation Controller NJ-Series NJ301-1100/1000/9000
Omron PLC
| Item | NJ501-@@@@ | NJ301-@@@@ | NJ101-@@@@ |
| Enclosure | Mounted in a panel | ||
| Grounding Method | Ground to less than 100 Ω | ||
| Dimensions (height´depth´width) | 90 mm ´ 90 mm ´ 90 mm | ||
| Weight | 550 g (including the End Cover) | ||
| Current Consumption | 5 VDC, 1.90 A (including SD Memory Card and End Cover) | ||
| Ambient Operating Temperature | 0 to 55°C | ||
| Ambient Operating Humidity | 10% to 90% (with no condensation) | ||
| Atmosphere | Must be free from corrosive gases. | ||
| Ambient Storage Temperature | -20 to 75°C (excluding battery) | ||
| Altitude | 2,000 m or less | ||
| Pollution Degree | 2 or less: Meets IEC 61010-2-201. | ||
| Noise Immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | ||
| Overvoltage Category | Category II: Meets IEC 61010-2-201. | ||
| EMC Immunity Level | Zone B | ||
|
Vibration Resistance |
Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
||
| Shock Resistance | Conforms to IEC 60068-2-27.
147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units) |
||
| Battery Life | 5 years at 25°C | ||
| Battery Model | CJ1W-BAT01 | ||
| Applicable Standards | Conforms to cULus, NK *1, LR *1, EU Directives, RCM and KC Registration *2. | ||
