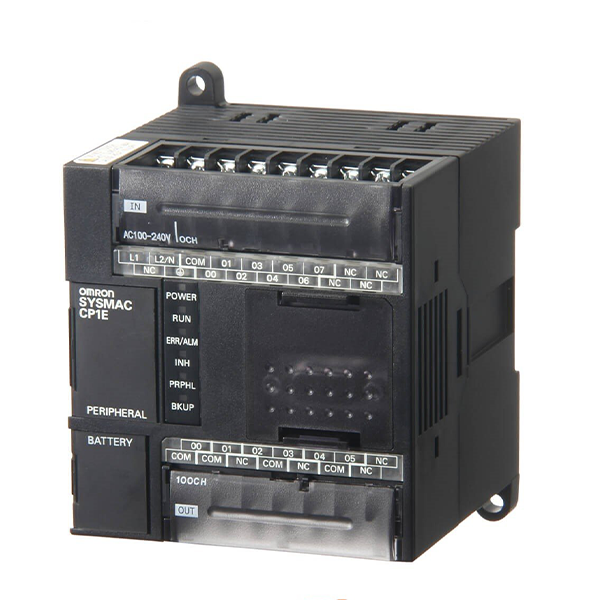

Omron PLC CP-series CP1E CPU Units CP1E-N14DR-D CP1E-N14DT-D/N14DT1-D
Omron PLC
| Item | CP1E-E@@SD@-@ CP1E-E@@D@-@ | CP1E-N@@S@D@-@ CP1E-N@@D@-@ CP1E-NA@@D@-@ |
| Transmission distance | 5 m max. | |
| Built-in RS-232C port |
No built-in RS-232C port |
Interface: Conforms to EIA RS-232C. |
| Communications method | Half duplex | |
| synchronization | Start-stop | |
| Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps | |
| Transmission distance | 15 m max. | |
| Supported protocol | · Host Link· 1:N NT Link· No-protocol mode
· Serial PLC Links (master, slave) · Modbus-RTU Easy Master |
|
| Built-in RS-485 port |
No built-in RS-485 port |
N30/40/60S1-type onlyInterface: Conforms to EIA RS-485. 2-wire sensors No isolation |
| Communications method | Half duplex | |
| synchronization | Start-stop | |
| Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps | |
| Transmission distance | 50 m max. | |
| Supported protocol | · Host Link· 1:N NT Link· No-protocol mode
· Serial PLC Links (master, slave) · Modbus-RTU Easy Master |
|
| Serial Option port |
Option Board cannot be mounted. |
N30/40/60 and NA20-type only 1 port |
| Mountable Option Boards | · One RS-232C port: CP1W-CIF01· One RS-422A/485 port (not isolated): CP1W-CIF11· One RS-422A/485 port (isolated): CP1W-CIF12-V1
· One Ethernet port: CP1W-CIF41 |
|
| Communications method | Depends on Option Board. | |
| synchronization | Depends on Option Board. | |
| Baud rate | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 kbps | |
| Compatible protocols | · Host Link· 1:N NT Link· No-protocol mode
· Serial PLC Links (master, slave) · Modbus-RTU Easy Master |
|
| Number of tasks | 17· One cyclic execution task· One scheduled interrupt task (always interrupt task 1)
· Six input interrupt tasks (interrupt tasks 2 to 7) · Sixteen high-speed counter interrupt tasks (interrupt tasks 1 to 16) |
|
| Maximum subroutine number | 128 | |
| Maximum jump number | 128 | |
| Scheduled interrupt tasks | 1 interrupt task | |
| Clock | Clock function not included.The time of error occurrence displays 01-01-01 01:01:01 Sunday | Included.Accuracy (monthly deviation):-4.5 min to -0.5 min at ambient temperature of 55oC,
-2.0 min to +2.0 min at ambient temperature of 25oC, -2.5 min to +1.5 min at ambient temperature of 0oC |
| Built-in EEPROM | Ladder programs and parameters are automatically saved to built-in EEPROM A section of the Data Memory Area can be saved to the built-in EEPROM. | |
| Battery backup With CP1W-BAT01 Battery (Sold separately) | Battery cannot be mounted. | CP1W-BAT01 can be used. Maximum battery service life: 5 years Backup TimeGuaranteed value (ambient temperature: Battery (Sold separately)Effective value (ambient temperature: 25oC): 43,000 hours (approx. 5 years) |
| Input Bits | 1,600 bits (100 words): CIO 0.00 to CIO 99.15 (CIO 00 to CIO 99) | |
| Output Bits | 1,600 bits (100 words): CIO 100.00 to CIO 199.15 (CIO 100 to CIO 199) | |
| Serial PLC Link Words | 1,440 bits (90 words): CIO 200.00 to CIO 289.15 (words CIO 200 to CIO 289) | |
| Work Area (W) | 1,600 bits (100 words): W0.00 to W99.15 (W0 to W99) | |
| Holding Area (H) | 800 bits (50 words): H0.00 to H49.15 (H0 to H49)Bits in this area maintain their ON/OFF status when operating mode is changed. | |
| Auxiliary Area (A) | Read-only: 7,168 bits (448 words) A0 to A447Read/write: 4,896 bits (306 words) in words A448 to A753 | |
| Temporary Relay Area (TR) (TR Area) | 16 bits: TR0 to TR15 | |
| Timer Area (T) | 256 timer numbers (T0 to T255 (separate from counters)) | |
| Counter Area (C) | 256 counter numbers (C0 to C255 (separate from timers)) | |
