| Item | Specifications |
| Applicable PLCs | CP1H CPU Units |

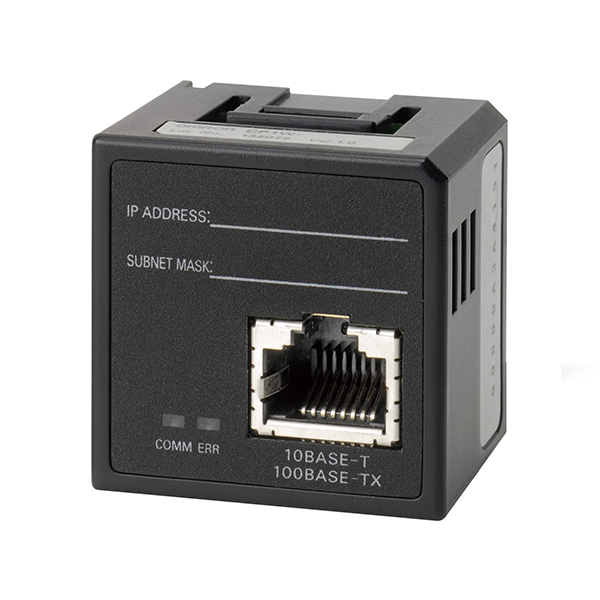

| Number of Units that can be mounted | 2 sets. (The CP1W-CIF41 Ver.1.0 and Ver.2.0 can be combined and used with one CPU Unit. When using CP1W- CIF41 Ver.1.0, only one unit can be mounted in an option board slot.) |
| Media access method | CSMA/CD |
| Modulation method | Baseband |
| Transmission paths | Star form |
| Baud rate | 100 Mbit/s (100Base-TX), 10 Mbit/s (10Base-T) |
|
100 Mbit/s |
• Unshielded twisted-pair (UDP) cable Categories: 5, 5e
• Shielded twisted-pair (STP) cable Categories: 100 Ω at 5, 5e |
|
10 Mbit/s |
• Unshielded twisted-pair (UDP) cable Categories: 3, 4, 5, 5e
• Shielded twisted-pair (STP) cable Categories: 100 Ω at 3, 4, 5, 5e |
| Transmission Distance | 100 m (distance between hub and node) |
| Item | FINS Communications Service Specifications |
| Number of nodes | 254 |
| Message length | 1016 bytes max. |
| Size of buffer | 8k |
| Communications Function | FINS Communications Service (UDP/IP, TCP/IP) |
| Protocol used | UDP/IP |
| Server/Client | Only server (Cannot be used as a client) |
| Port number | 9600 (default) Can be changed. |
| Protection | No |
| Protocol used | TCP/IP |
| Server/Client | Only server (Cannot be used as a client) |
| Number of connections | Up to 2 simultaneous connections and only one connection can be set to client |
| Port number | 9600 (default) Can be changed. |
| Protection | Yes (Specification of client IP addresses when unit is used as a server) |
