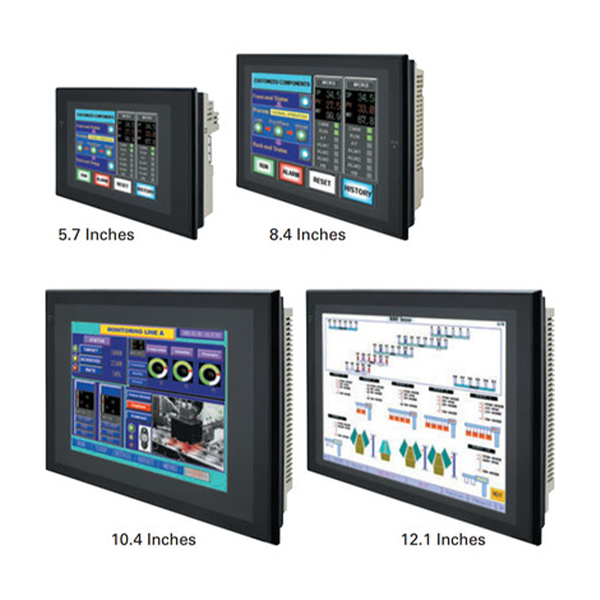

Omron SYSMAC One NSJ- series NSJ Controller NSJ12-TS01-G5D NSJ10-TV01-G5D
Omron PLC Controller
| Items | Specifications | |||
| Model | NSJ12-TS01-G5D | NSJ10-TV01-G5D | NSJ8-TV01-G5D | NSJ5-TQ11-G5D |
| Supply voltage | 24 VDC | |||
| Allowable supply voltage range | 20.4 to 27.6 VDC (24 VDC ±15%) | |||
| Power consumption | 30 W max. | TQ1@: 22 W max. | ||
| Current consumption | Controller Section Internal 5 V: 500 mA max.
DeviceNet Section Internal 5 V: 200 mA max., External 24 V: 18 mA max. |
|||
| Inrush current (See note 1.) | At 24 VAC: 10 A/20 ms max. for cold start at room temperature | |||
| Ambient operating temperature (depending on angle of display sur- face off horizontal) (See note 2.) | 90° to 60°: 0 to 50°C
60° to 30°: 0 to 45°C 30° to 0°: Use prohibited. |
90° to 30°: 0 to 50°C
30° to 0°: 0 to 40°C |
||
| Ambient storage temperature | -20 to 60°C | |||
| Ambient operating humidity | 0 to 40°C: 35% to 85% (with no condensation)
40 to 50°C: 35% to 60% (with no condensation) |
|||
| Ambient operating environment | No corrosive gases | |||
| Insulation resistance | 20 MΩ min. (at 100 VDC) between DC external and GR terminals | |||
| Dielectric strength | 800 VDC for 1 min between DC external and GR terminals, leakage current: 10 mA max. | |||
| Noise immunity | 2 kV on power supply line (conforming to IEC 61000-4-4) | |||
| Vibration resistance (during operation) | 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes | |||
| Shock resistance (during operation) | 147 m/s2, 3 times each in X, Y, and Z directions | |||
| Without Expansion Unit | 315 ´ 241 ´ 73.3 mm (W ´ H ´ D) | 232 ´ 177 ´ 73.3 mm (W ´ H ´ D) | 195 ´ 142 ´ 79 mm (W ´ H ´ D) | |
| With Expansion Unit | 315 ´ 241 ´ 89.3 mm (W ´ H ´ D) | 232 ´ 177 ´ 89.3 mm (W ´ H ´ D) | 195 ´ 142 ´ 95 mm (W ´ H ´ D) | |
| Panel cutout dimensions | 302 +1 ´ 228 +1 mm (W ´ H)
0 0 Panel thickness: 1.6 to 4.8 mm |
220.5 +0.50 ´ 165.5 +0.50 mm (W ´ H)
0 0 Panel thickness: 1.6 to 4.8 mm |
184 +0.50 ´ 131 +0.5 mm (W ´ H)
0 0 Panel thickness: 1.6 to 4.8 mm |
|
| Grounding | 100 Ω or less | |||
| Weight | 2.7 kg max. | 2.5 kg max. | 2.0 kg max. | 1.1 kg max. |
|
Degree of protection |
Front operating panel: Equivalent to IP65 Oil-proof type and NEMA4 (See note 4.) |
Front operating panel: Equivalent to IP65 Oil-proof type, NEMA4 and UL Type 4 (See note 4.) | ||
|
Battery life |
5 years (at 25°C)
The SRAM and RTC will be backed up for 5 days after the battery runs low (i.e., after the indicator lights orange). The SRAM and RTC will be backed up by a super capacitor for 5 minutes after removing the old battery (i.e., after turning ON power after 5 minutes). |
|||
| International standards | Conforms to cULus and EC Directives. | |||
