The W4S1 Switching Hub from OMRON is a low-cost, unmanaged switch that does not require software settings to maintain superior reliability and consistent control data performance on an Ethernet/IP network. It can be used with confidence because it carries a brand name well known at production sites and because it is backed by OMRON's total support package for products ranging from PLCs to switching hubs.
Components & Accessories

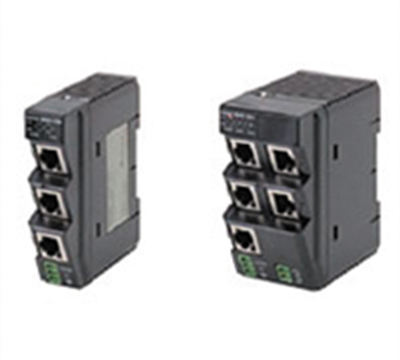

Industrial Switching Hubs OMRON W4S1
Provides the environmental resistance and functionality required in factory automation built around Industrial Ethernet communications.
Features
Environmentally Resistant and Highly Reliable Ethernet Communications for Production Sites
[Environmentally Resistant] Perfect Fit for Factory Automation Environments
Tough environmental resistance assures users that the W4S1 Switching Hub can perform in any environment where PLCs and robots are found. Add to this simple DIN track mounting and well-thought out cable mounting angles and the result is a significant reduction in the man-hours and space requirements for control panel installation.
[Highly Reliable] Enhanced Network Reliability
The W4S1 Switching Hub is an unmanaged switch that is fully capable of failure detection and broadcast storm detection. It improves network reliability by notifying users immediately via contact outputs and LED indicators when an error occurs to quickly pinpoint the location of the error.
Failure Notification
LED indicators and external outputs notify users when an SW-LSI or microcomputer error has occurred.
Broadcast Storm Detection and Suppression
The W4S1 Switching Hub detects and suppresses broadcast storms that occur when switches are accidentally connected in a loop.
[Full Line of Products] The 3- or 5-port Product Variation Ensures the Right Product Choice
We offer a low-cost 3-port model that can be used as easily as a T-branch to let you select the best model for your application.

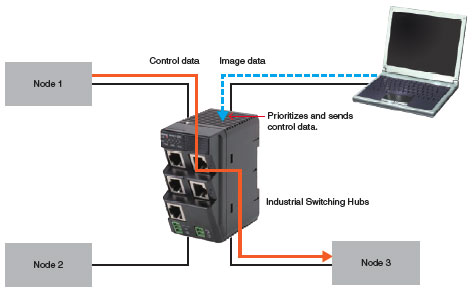

[Maintaining EtherNet/IP Performance] Quality of Service (QoS) without Support Software
The QoS (packet prioritization control) for EtherNet/IP ensures high-speed delivery of control data even if it is dispersed among images and similar data-intensive applications. And complex software settings are eliminated because QoS can be enabled with a DIP switch setting.
No Support Software required.
Simply turn ON a DIP switch pin to enable QoS.
Company names and product names in this document are the trademarks or registered trademarks of their respective companies.
Lineup
International Standards
• The standards are abbreviated as follows: UC: cULus and CE: EC Directives.
• Contact your OMRON representative for futher details applicable conditions for these standards.
| Product name |
Specifications | Current consump- tion (A) |
Accessories | Model | Stand- ards |
||
|---|---|---|---|---|---|---|---|
| Functions | No. of ports |
Failure detection |
|||||
| Industrial Switching Hubs |
Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation |
3 | NO | 0.22 | Power supply connector |
W4S1-03B *1 | UC, CE |
*1. Orders for W4S1-03B will be accepted until the end of August 2022.
Note: W4S1-05B and W4S1-05C in this catalog have been discontinued.
Specifications
Summary of Functions
| W4S1-03B | W4S1-05B | W4S1-05C | |
|---|---|---|---|
| No. of ports (RJ45) | 3 | 5 | 5 |
| Ethernet standards | IEEE 802.3 10BASE-T,100BASE-TX | ||
| Auto MDI/MDI-X | Supported | Supported | Supported |
| Auto Negotiation | Supported | Supported | Supported |
| Store-and-Forward system | Supported | Supported | Supported |
| Buffer | 80 KB | ||
| MAC addresses | 2,000 | ||
| SW-LSI and microcomputer error detection | Not supported | Not supported | Supported |
| Broadcast storm detection | Not supported | Not supported | Supported |
| QoS for EtherNet/IP | Supported | Supported | Supported |
| SNMP | Not Supported | Not Supported | Not Supported |
| VLAN | Not Supported | Not Supported | Not Supported |
| STP | Not Supported | Not Supported | Not Supported |
| IGMP Snooping | Not Supported | Not Supported | Not Supported |
| Port mirroring | Not Supported | Not Supported | Not Supported |
Specifications
| Power supply voltage | 24 VDC ±5% |
|---|---|
| Power consumption | 5.28 W max |
| Inrush current | lp = 1.42 A |
| Switching capacity (Switching fabric) *1 |
3-port model: 500 Mbps 5-port model: 700 Mbps |
| Throughput *2 | 148,800 pps |
| Dielectric strength | 1 mA at 250 VAC for 1 minute (Between LAN connectors, between error output connectors, and between FG and power supply connectors) |
| EMI and EMS | EN: 61000-6-4 2007 and EN: 61000-6-2 2005 |
| Vibration Resistance | JIS C60068-2-6 conforming, 5 to 8.4Hz, 3.5mm amplitude, 8.4 to 150 Hz, acceleration 9.8m/s2 |
| Shock Resistance | JIS C60068-2-27 conforming, 196m/s2 |
| Setting method | Settings are made in the Switching Hub. |
| Ambient operating environment | No corrosive gas |
| Ambient operating temperature | 0 to 55°C (with no icing and no condensation) |
| Ambient operating humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | -20 to 75°C (with icing and no condensation) |
| International standards *3 | EC Directives |
*1. Switching capacity per Unit.
*2. Maximum throughput for 64-byte data at 100 Mbps.
Throughput per port. There is no difference between the models (3-port and 5-port models).
*3. Contact your OMRON representative for further details and applicable conditions for these standards.
*2. Maximum throughput for 64-byte data at 100 Mbps.
Throughput per port. There is no difference between the models (3-port and 5-port models).
*3. Contact your OMRON representative for further details and applicable conditions for these standards.
Dimensions
(Unit: mm)
W4S1-03B
W4S1-05B
W4S1-05C
