Routering, Drilling & Depaneling

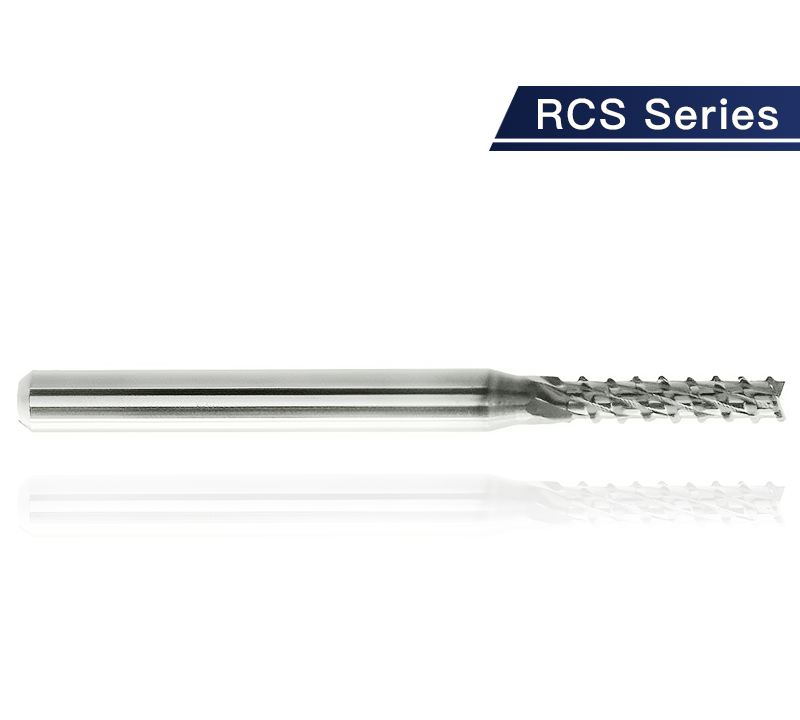

PCB Coated Right Cutting Router Bit
- RCS Series
- For Metal Core PCB (MCPCB), FR-4, FR-5, BT
- Higher surface hardness
|

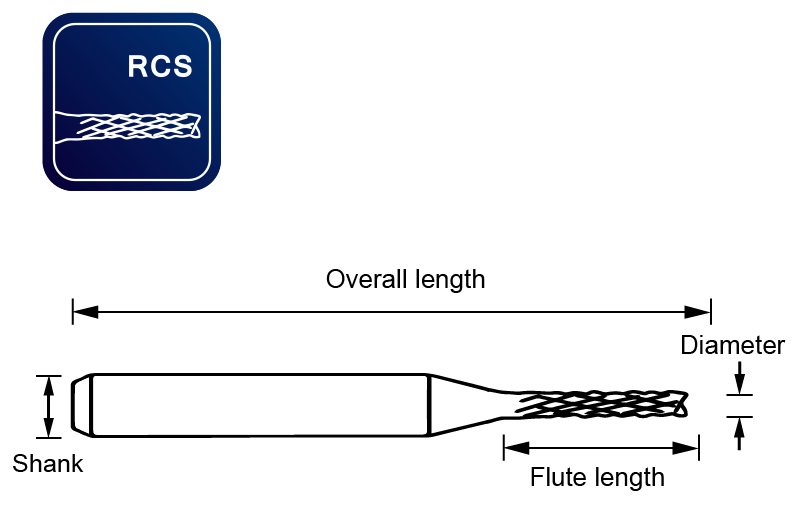

Product |
Overall Length |
Shank Diameter |
Flute Diameter |
Flute Length |
|
PCB Coated Right Cutting Router Bit RCS Series
|
38.1 |
3.175 |
0.5 |
4.5 |
|
38.1 |
3.175 |
0.5 |
3.0 |
|
|
38.1 |
3.175 |
0.6 |
4.5 |
|
|
38.1 |
3.175 |
0.7 |
6.0 |
|
|
38.1 |
3.175 |
0.8 |
6.0 |
|
|
38.1 |
3.175 |
0.9 |
6.5 |
|
|
38.1 |
3.175 |
1.0 |
8.0 |
|
|
38.1 |
3.175 |
1.2 |
8.0 |
|
|
38.1 |
3.175 |
1.3 |
8.0 |
|
|
38.1 |
3.175 |
1.4 |
8.0 |
|
|
38.1 |
3.175 |
1.5 |
9.0 |
|
|
38.1 |
3.175 |
1.6 |
9.0 |
|
|
38.1 |
3.175 |
1.8 |
9.5 |
|
|
38.1 |
3.175 |
2.0 |
10.5 |
|
|
38.1 |
3.175 |
2.38 |
11.5 |
