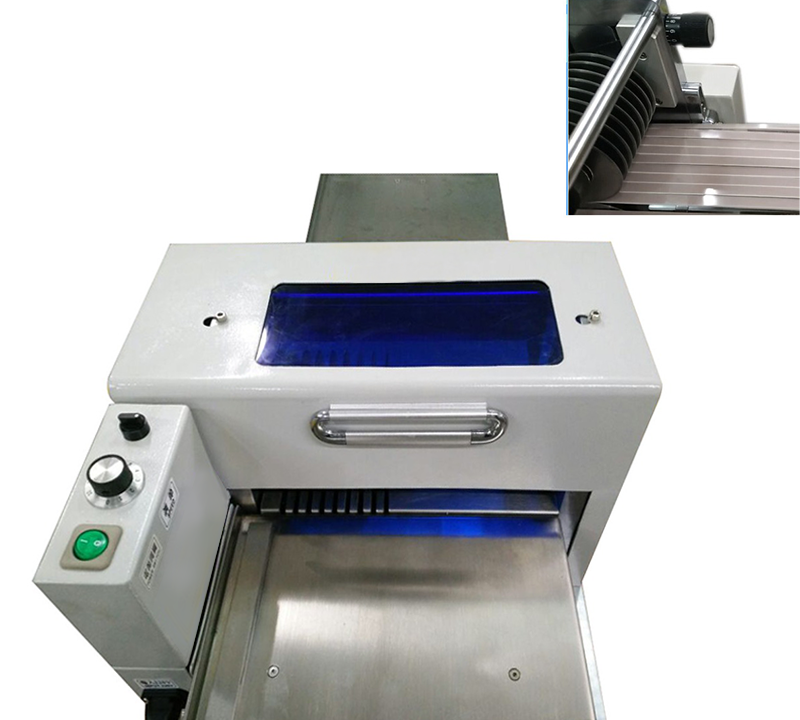

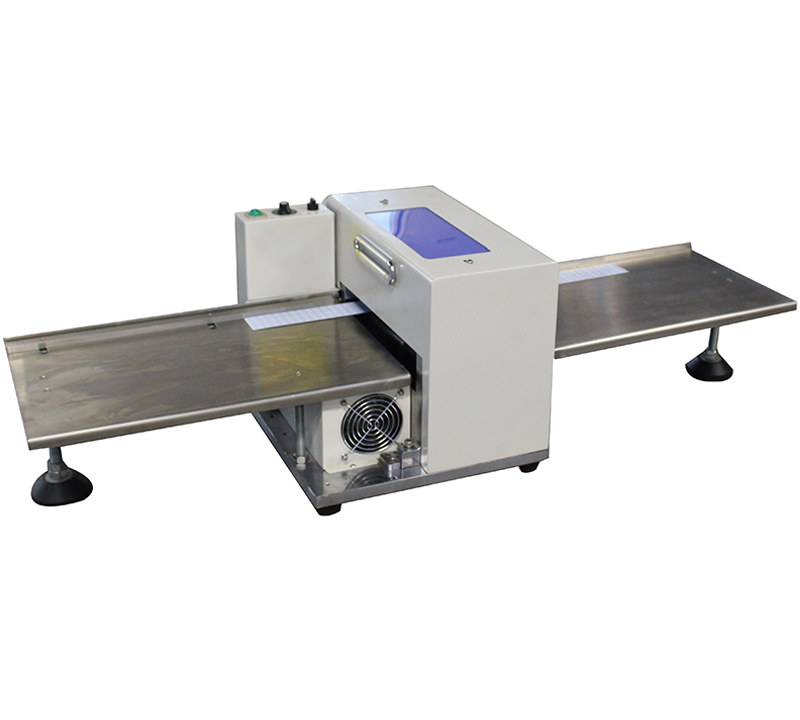

PCB Depaneling Machine with 9 Pairs of Blades (LED Strip)
- Cutting Length: Unlimited
- Material: High Speed Steel
- Number Of Blades: 9 Pairs
- Blades Shape: Circular Blades
- Machine Type: Automatic
Features
Specification
- The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is shown on the screen.
- It can cut 8 pcs boards with multiple sets of blades work at the same time.
- The blade flywheel and the distance between blade are adjustable
- The blade is made of high-speed steel material, which is durable and have a long service life.
- It is convenient to adjust the cutting speed through rotary knob
- With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
Specification
| Machine Model | |
| Max. Cutting Length | Unlimited |
| Blades Material | High Speed Steel |
| Cutting Speed | 400 mm/s |
| Voltage | 220 /110 V |
| Cutting Thickness | 1.0-3.5 mm |
| Machine Size | 2180 * 620 * 960 mm |
