Routering, Drilling & Depaneling
Unit: mm

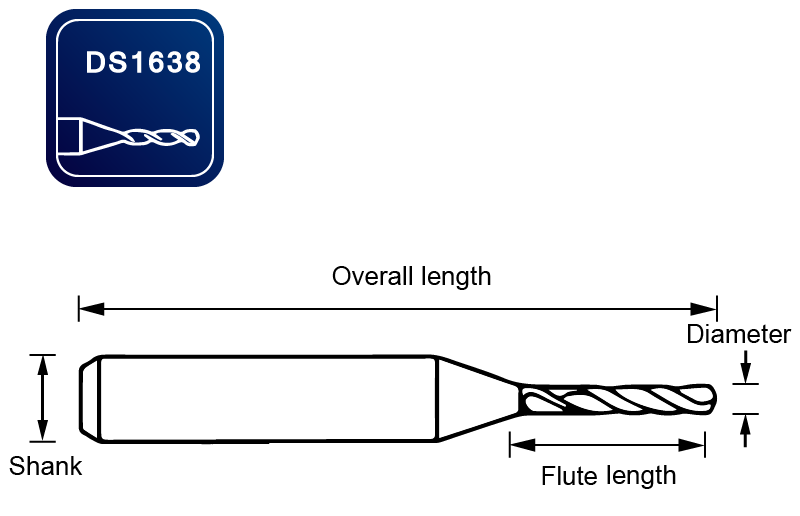

| Product | Overall Length | Shank Diameter | Flute Diameter | Flute Length |

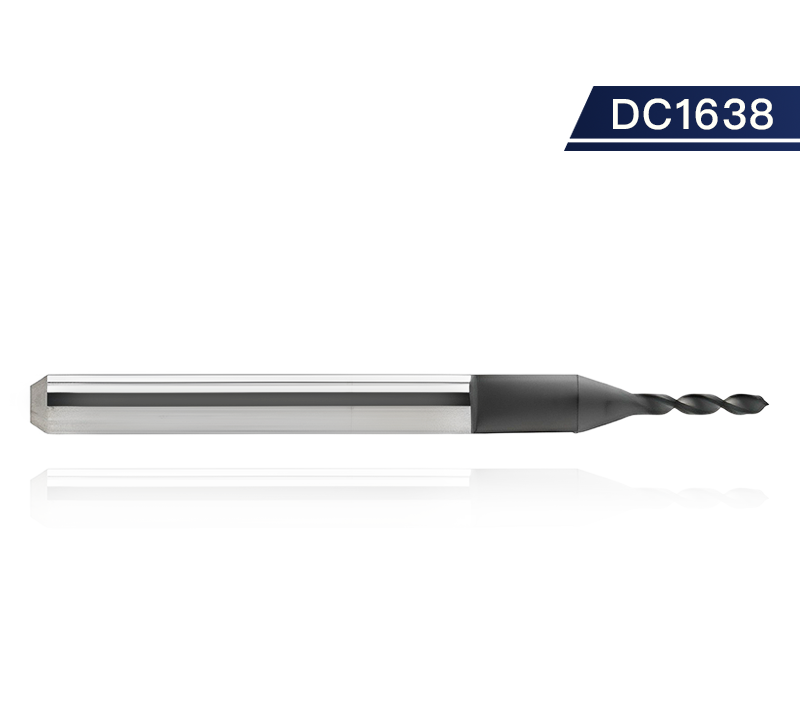

PCB Diamond Coated Drill Bit DC1638 |
38.1 | 3.175 | 0.50 | 7.0 |
| 38.1 | 3.175 | 0.55 | 7.0 | |
| 38.1 | 3.175 | 0.60 | 5.0 | |
| 38.1 | 3.175 | 0.60 | 7.0 | |
| 38.1 | 3.175 | 0.65 | 7.0 | |
| 38.1 | 3.175 | 0.70 | 7.0 | |
| 38.1 | 3.175 | 0.75 | 7.0 | |
| 38.1 | 3.175 | 0.80 | 5.0 | |
| 38.1 | 3.175 | 0.80 | 7.0 | |
| 38.1 | 3.175 | 0.85 | 7.0 | |
| 38.1 | 3.175 | 0.90 | 7.0 | |
| 38.1 | 3.175 | 0.95 | 7.0 | |
| 38.1 | 3.175 | 1.00 | 7.0 | |
| 38.1 | 3.175 | 1.05 | 7.0 | |
| 38.1 | 3.175 | 1.10 | 7.0 | |
| 38.1 | 3.175 | 1.15 | 7.0 | |
| 38.1 | 3.175 | 1.20 | 7.0 | |
| 38.1 | 3.175 | 1.25 | 7.0 |
