Routering, Drilling & Depaneling
Unit: mm

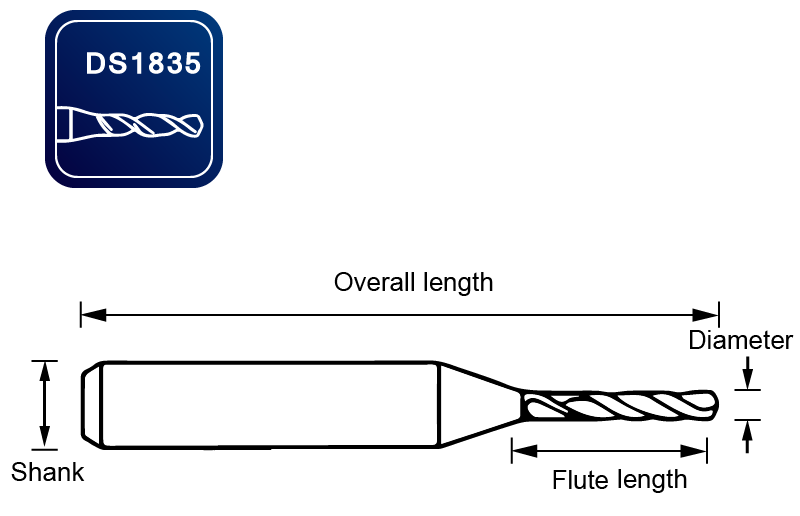

| Product | Overall Length | Shank Diameter | Flute Diameter | Flute Length |

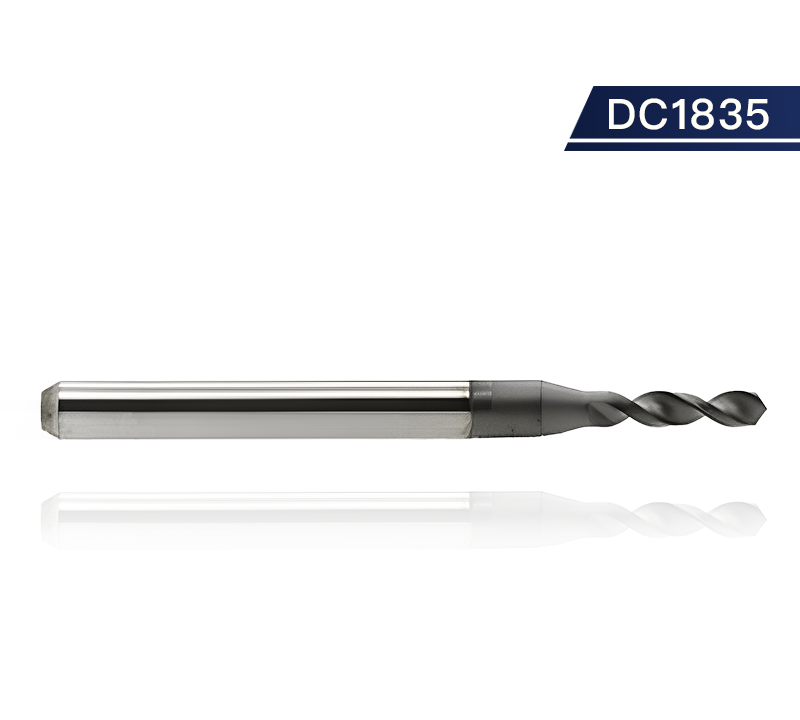

PCB Diamond Coated Drill Bit DC1835 |
38.1 | 3.175 | 1.30 | 7.0 |
| 38.1 | 3.175 | 1.35 | 7.0 | |
| 38.1 | 3.175 | 1.40 | 7.0 | |
| 38.1 | 3.175 | 1.45 | 7.0 | |
| 38.1 | 3.175 | 1.50 | 7.0 | |
| 38.1 | 3.175 | 1.55 | 7.0 | |
| 38.1 | 3.175 | 1.60 | 7.0 | |
| 38.1 | 3.175 | 1.65 | 7.0 | |
| 38.1 | 3.175 | 1.70 | 7.0 | |
| 38.1 | 3.175 | 1.75 | 7.0 | |
| 38.1 | 3.175 | 1.80 | 7.0 | |
| 38.1 | 3.175 | 1.85 | 7.0 | |
| 38.1 | 3.175 | 1.90 | 7.0 | |
| 38.1 | 3.175 | 1.95 | 7.0 | |
| 38.1 | 3.175 | 2.00 | 9.0 | |
| 38.1 | 3.175 | 2.05 | 9.0 | |
| 38.1 | 3.175 | 2.10 | 9.0 | |
| 38.1 | 3.175 | 2.15 | 9.0 | |
| 38.1 | 3.175 | 2.20 | 9.0 | |
| 38.1 | 3.175 | 2.25 | 9.0 | |
| 38.1 | 3.175 | 2.30 | 9.0 | |
| 38.1 | 3.175 | 2.35 | 9.0 | |
| 38.1 | 3.175 | 2.40 | 9.0 | |
| 38.1 | 3.175 | 2.45 | 9.0 | |
| 38.1 | 3.175 | 2.50 | 9.0 | |
| 38.1 | 3.175 | 2.55 | 9.0 | |
| 38.1 | 3.175 | 2.60 | 9.0 | |
| 38.1 | 3.175 | 2.65 | 9.0 | |
| 38.1 | 3.175 | 2.70 | 9.0 | |
| 38.1 | 3.175 | 2.75 | 9.0 | |
| 38.1 | 3.175 | 2.80 | 9.0 | |
| 38.1 | 3.175 | 2.85 | 9.0 | |
| 38.1 | 3.175 | 2.90 | 9.0 | |
| 38.1 | 3.175 | 2.95 | 9.0 | |
| 38.1 | 3.175 | 3.00 | 9.0 | |
| 38.1 | 3.175 | 3.05 | 9.0 | |
| 38.1 | 3.175 | 3.10 | 9.0 | |
| 38.1 | 3.175 | 3.15 | 9.0 | |
| 38.1 | 3.175 | 3.175 | 9.0 |
