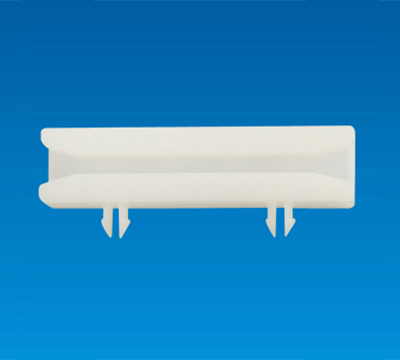

PCB GUIDE RAIL CG-04E

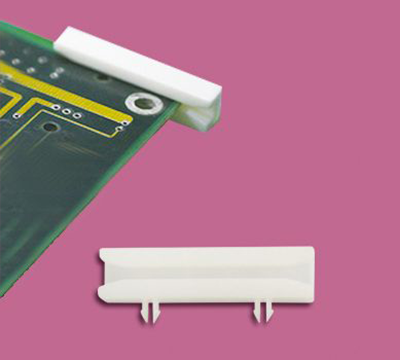

- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-04E
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

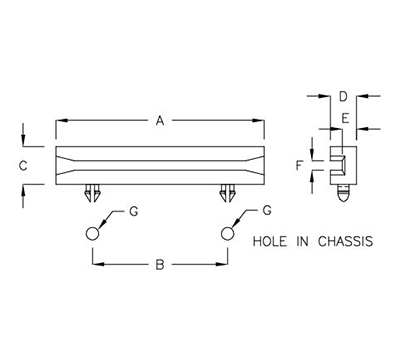

| PART NO | A | B | C | D | E | F | G |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
|
CG-04E
|
38.3
|
20.0
|
9.3
|
6.5
|
3.5
|
1.8
|
Ø3.5
|
1.6
|
500
|
|
CG-04C
|
38.3
|
20.2
|
9.3
|
6.5
|
3.5
|
2.3
|
Ø3.2
|
1.6
|
|
|
CG-04H
|
50.0
|
40.0
|
7.0
|
6.0
|
3.0
|
2.0
|
Ø3.2
|
1.6
|
200
|
|
CG-08C
|
80.5
|
60.0
|
9.4
|
6.4
|
3.4
|
2.3
|
Ø3.2
|
1.6
|
100
|
|
CG-08D
|
80.5
|
60.0
|
8.0
|
6.0
|
3.0
|
2.0
|
Ø3.2
|
1.6
|
|
|
CG-08H
|
80.5
|
60.0
|
8.0
|
6.0
|
3.0
|
2.0
|
Ø3.2
|
2.6
|
