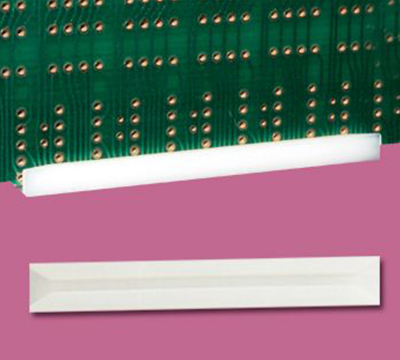

PCB GUIDE RAIL CG-06H
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount

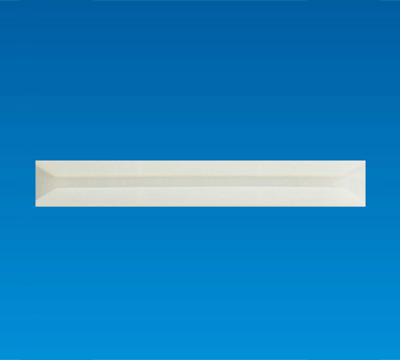

PCB GUIDE RAIL CG-06H
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

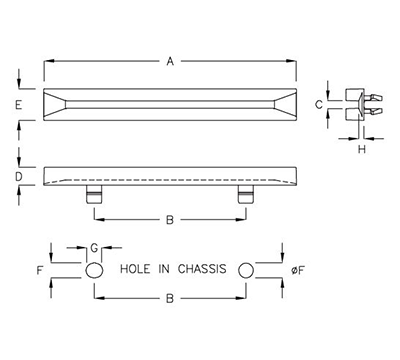

| PART NO | A | B | C | D | E | F | G | H |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|
|
CG-06H
|
63.5
|
38.1
|
1.9
|
4.5
|
7.9
|
4.6
|
5.0
|
1.3
|
1.6
|
200
|
|
CG-6J
|
63.5
|
38.1
|
2.3
|
2.8
|
4.6
|
3.4
|
4.0
|
1.0
|
1.0
|
|
|
CG-5QT
|
63.5
|
38.1
|
2.3
|
6.4
|
6.4
|
4.5
|
5.1
|
1.3
|
1.0
|
