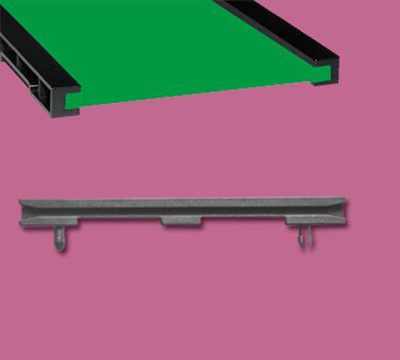

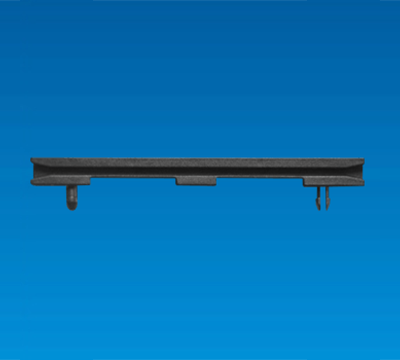

PCB GUIDE RAIL CG-08K
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-08K
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- NO EXTRA SCREW NEEDED

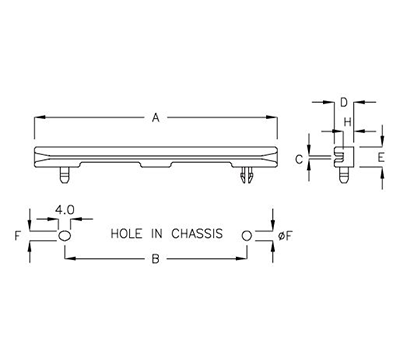

| PART NO | A | B | C | D | E | F | H | MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
| CG-08K | 80.0 | 60.0 | 1.1 | 6.5 | 6.7 | 3.2 | 3.5 | 2.0 | 100 |
