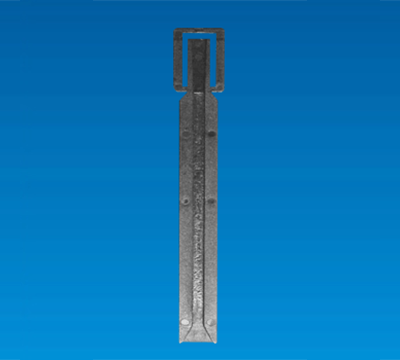

PCB GUIDE RAIL CG-09H

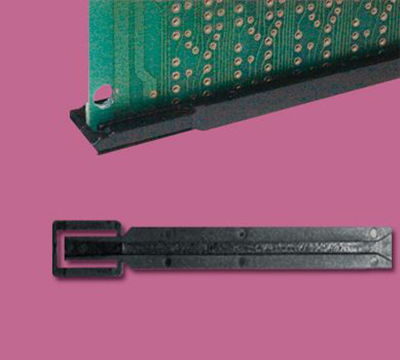

- One end Funnel Design,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-09H
FEATURES
SPECIFICATION
FEATURES
- One end Funnel Design,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- NO EXTRA SCREW NEEDED

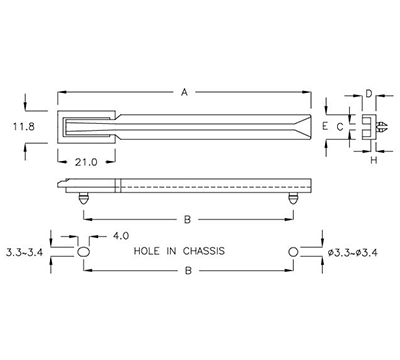

| PART NO | A | B | C | D | E | F |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
|
CG-09H
|
92.7
|
76.7
|
2.2
|
5.0
|
9.0
|
2.0
|
1.2
|
100
|
|
CG-09J
|
99.5
|
76.7
|
2.2
|
5.0
|
9.0
|
2.0
|
1.2
|
|
|
CG-09C
|
72.6
|
50.0
|
1.9
|
5.0
|
9.0
|
2.0
|
1.0
|
