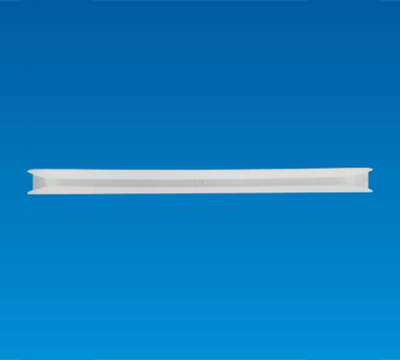

    PCB GUIDE RAIL CG-10N

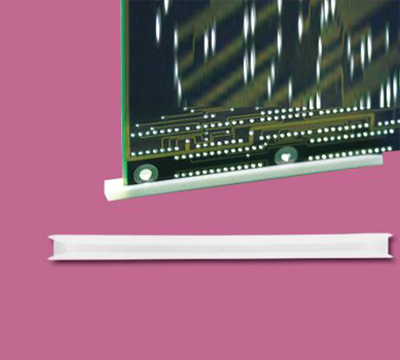

    • Funnel Design on both ends,allow board be inserted easily
    • Snap in Mount
    PCB GUIDE RAIL CG-10N

    FEATURES
    • Funnel Design on both ends,allow board be inserted easily
    • Snap in Mount

    SPECIFICATION
    • MATERIAL: NYLON 66 (UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL
    • NO EXTRA SCREW NEEDED

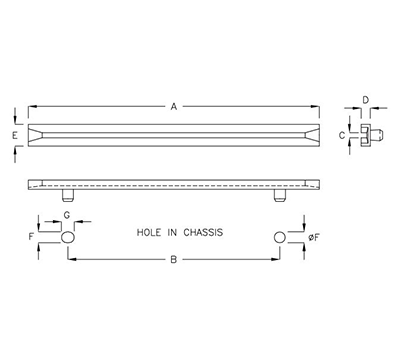

    pcb-guide-rail-cg-10n-1

    PART NO A B C D E F G MAXIMUM
    THICKNESS
    PACKAGE
    CG-10N 101.6 88.9 1.9 4.4 6.4 3.2 4.0 1.1 100
    CG-16N 164.1 152.4 2.0 4.4 6.5 3.2 3.9 1.1 100
