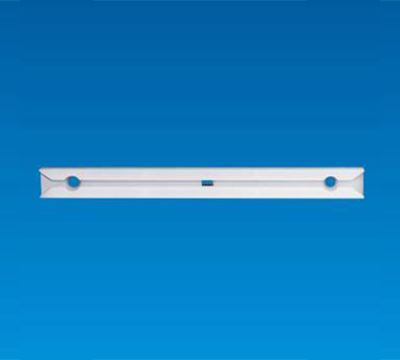

PCB GUIDE RAIL CG-12AT

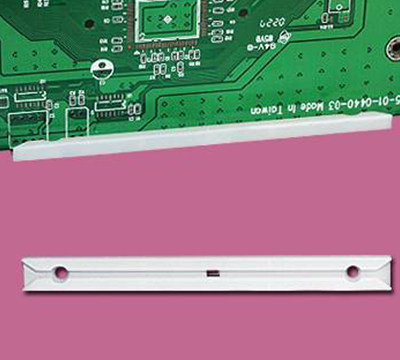

- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-12AT
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL

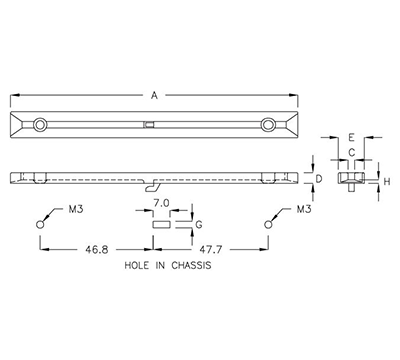

| PART NO | A | C | D | E | G | H | MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
| CG-12AT | 119.0 | 2.6 | 4.5 | 10.8 | 2.1 | 1.5 | 1.0 | 100 |
| CG-12BG | 119.0 | 3.2 | 4.5 | 10.8 | 2.7 | 1.5 | 1.0 | 100 |
