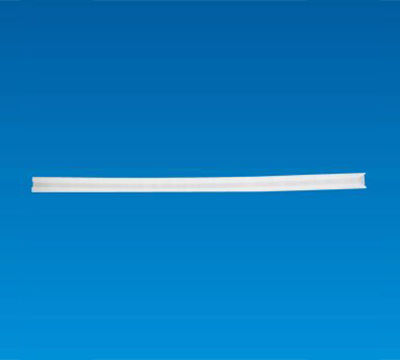

PCB GUIDE RAIL CG-20A

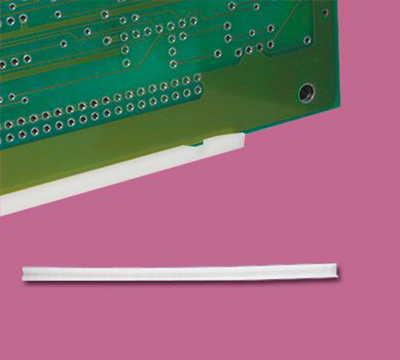

- One end Funnel Design,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-20A
FEATURES
SPECIFICATION
FEATURES
- One end Funnel Design,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

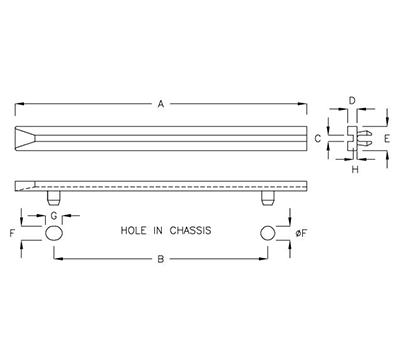

| PART NO | A | B | C | D | E | F | G | H |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|
| CG-20A | 203.2 | 177.8 | 2.0 | 3.2 | 7.9 | 4.6 | 5.4 | 1.3 | 1.7 |
100
|
