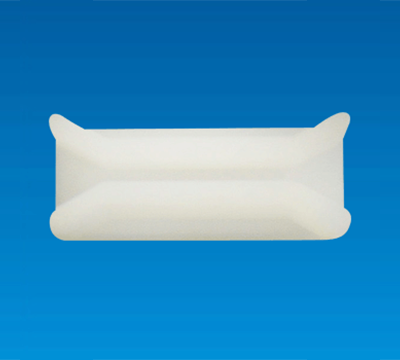

PCB GUIDE RAIL CG-2A

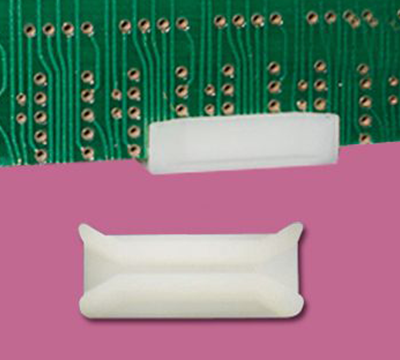

- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-2A
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

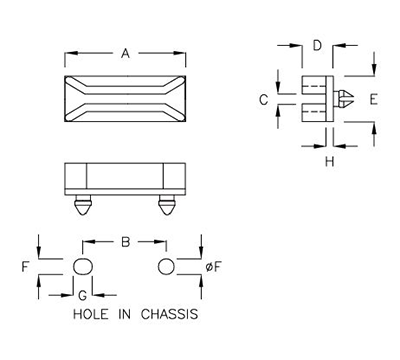

| PART NO | A | B | C | D | E | F | G | Ｈ |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|
| CG-2A | 26.0 | 18.0 | 1.9 | 6.8 | 9.7 | 3.4 | 4.0 | 1.3 |
1.0
|
500 |
