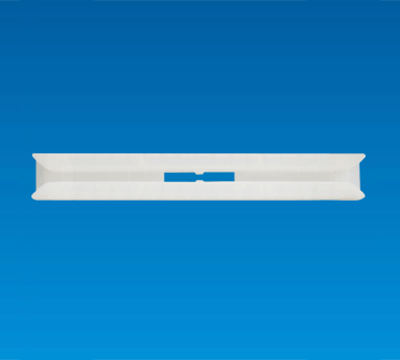

    PCB GUIDE RAIL CG-3A

    • Funnel Design on both ends,allow board be inserted easily
    • Snap in Mount
    add to cart Inquiry Now
    PCB GUIDE RAIL CG-3A

    FEATURES
    • Funnel Design on both ends,allow board be inserted easily
    • Snap in Mount

    SPECIFICATION
    • MATERIAL: NYLON 66(UL)
    • FLAME CLASS: 94V-2
    • COLOR: NATURAL
    • NO EXTRA SCREW NEEDED

    pcb-guide-rail-cg-3a-1

    PART NO A B C D E F G H

    MAXIMUM
    THICKNESS

    		 FORM PACKAGE
    CG-3A
    38.0
    25.4
    1.9
    4.6
    9.6
    3.4
    4.0
    1.5
    1.2
    1
    500
    CG-5A
    50.8
    38.0
    2.3
    4.6
    9.6
    3.4
    4.0
    1.5
    1.1
    1
    200
    CG-7A
    76.6
    63.5
    2.2
    4.6
    10.0
    3.4
    4.0
    1.4
    1.2
    1
    100
    CG-7C
    76.6
    63.5
    2.1
    4.1
    10.0
    3.4
    4.0
    1.1
    1.2
    1
    CG-9A
    89.7
    76.7
    1.9
    4.5
    9.7
    3.4
    4.0
    1.5
    1.2
    2
    CG-9F
    89.2
    76.7
    2.3
    4.4
    6.4
    3.4
    4.0
    1.1
    1.2
    1
    CG-10A
    102.1
    89.5
    2.2
    4.6
    6.3
    3.4
    4.0
    1.1
    1.2
    1
    CG-10M
    100.0
    70.0
    2.0
    4.3
    7.5
    4.8
    6.0
    2.3
    1.1
    1
    100
    CG-10P
    100.0
    70.0
    2.0
    4.3
    7.5
    4.8
    6.4
    1.5
    1.2
    1
    CG-12D
    114.3
    88.9
    1.9
    6.4
    6.4
    4.8
    5.5
    1.3
    1.2
    1
    CG-13A
    127.0
    101.6
    2.3
    4.6
    6.4
    3.4
    4.0
    1.1
    1.5
    1
    CG-13C
    110.0
    101.6
    2.3
    4.6
    6.4
    3.4
    4.0
    1.1
    1.2
    1
    CG-14A
    136.0
    114.5
    2.2
    4.6
    6.3
    3.4
    4.0
    1.1
    1.5
    1
    CG-15C
    153.8
    141.6
    2.1
    4.8
    6.5
    3.4
    4.0
    1.4
    1.2
    1
    CG-18A
    181.1
    161.3
    2.0
    4.6
    6.5
    3.4
    4.6
    1.2
    1.2
    1
    CG-19A
    191.1
    177.0
    2.0
    5.5
    6.4
    3.4
    4.0
    1.8
    1.2
    1
    CG-21A
    217.8
    205.0
    2.0
    4.6
    6.6
    3.4
    4.0
    1.2
    1.0
    1
    CG-21B
    218.7
    205.0
    2.2
    7.7
    6.6
    3.4
    4.0
    1.3
    1.2
    1
