PCB GUIDE RAIL CG-4A
- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount

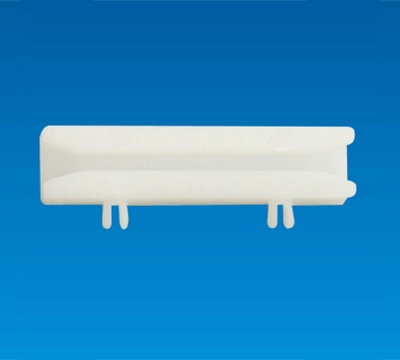

PCB GUIDE RAIL CG-4A
FEATURES
SPECIFICATION
FEATURES

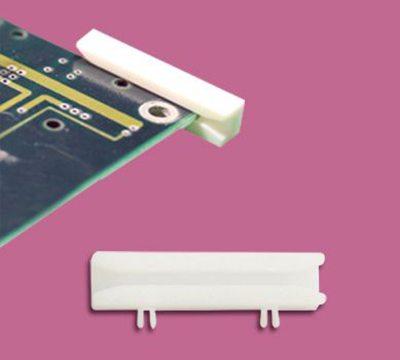

- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

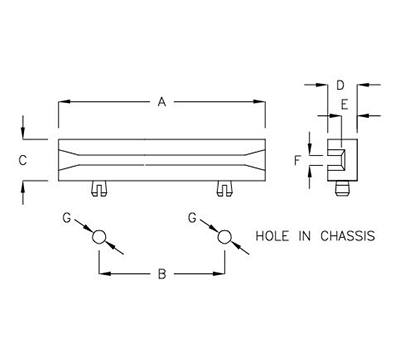

| PART NO | A | B | C | D | E | F | G |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|
| CG-4A | 38.3 | 20.2 | 9.3 | 6.5 | 3.5 | 2.3 | Ø3.0 | 1.2 | 500 |
