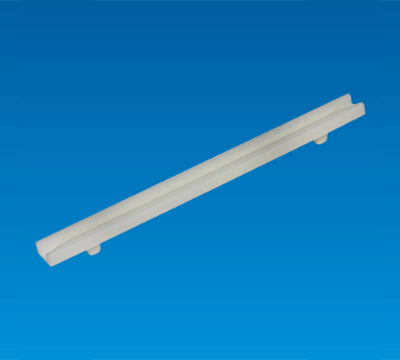

PCB GUIDE RAIL CG-92FM

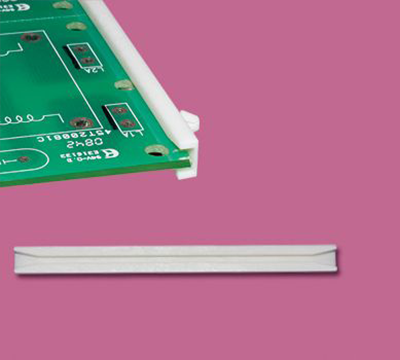

- One end Funnel Design,allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-92FM
FEATURES
SPECIFICATION
FEATURES
- One end Funnel Design,allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

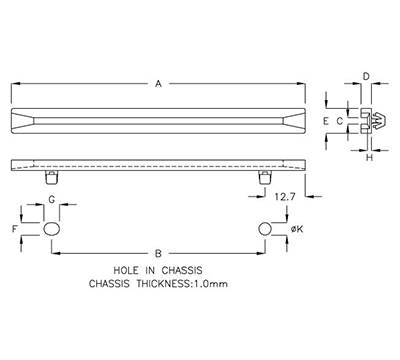

| PART NO | A | B | C | D | E | F | G |
H |
K |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|
| CG-92FM | 92.8 | 67.4 | 1.9 | 3.3 | 7.9 | 4.0 | 5.0 | 1.3 | 4.0 | 100 |
