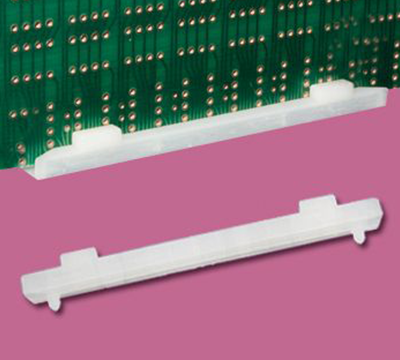

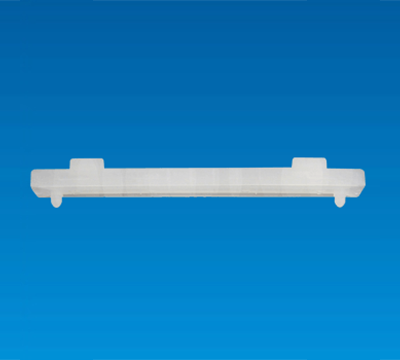

PCB GUIDE RAIL CG-9AW
- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-9AW
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

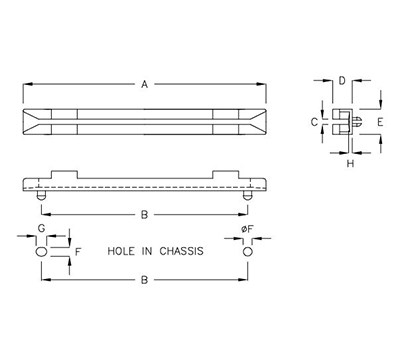

| PART NO | A | B | C | D | E | F | G | H | MAXIMUM THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|
| CG-9AW | 89.7 | 76.7 | 1.9 | 11.6 | 9.7 | 3.4 | 4.0 | 1.3 | 1.2 | 100 |
| CG-9D | 89.7 | 76.7 | 1.9 | 7.1 | 9.5 | 3.4 | 4.0 | 1.4 | 1.2 | 100 |
