PCB GUIDE RAIL CG-9B
- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
PCB GUIDE RAIL CG-9B
FEATURES
SPECIFICATION
FEATURES
- Funnel Design on both ends, allow board be inserted easily
- Snap in Mount
SPECIFICATION
- MATERIAL: NYLON 66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- NO EXTRA SCREW NEEDED

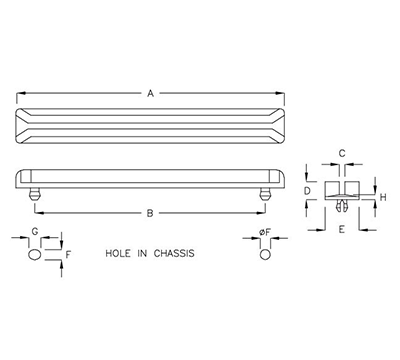

| PART NO | A | B | C | D | E | F | G | H |
MAXIMUM |
PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|
| CG-9B | 89.2 | 76.85 | 1.9 | 6.0 | 11.3 | 3.4 | 4.0 | 1.6 | 1.2 |
100
|
