Routering, Drilling & Depaneling
Unit: mm

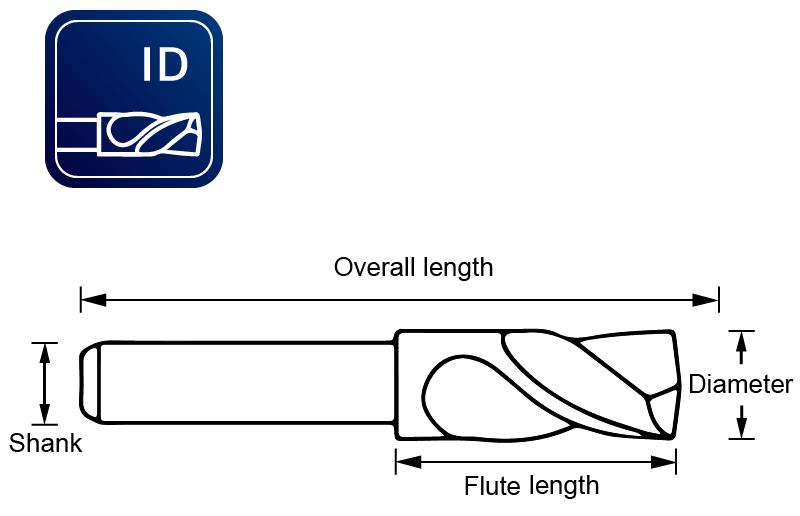

| Product | Overall Length | Shank Diameter | Flute Diameter | Flute Length |

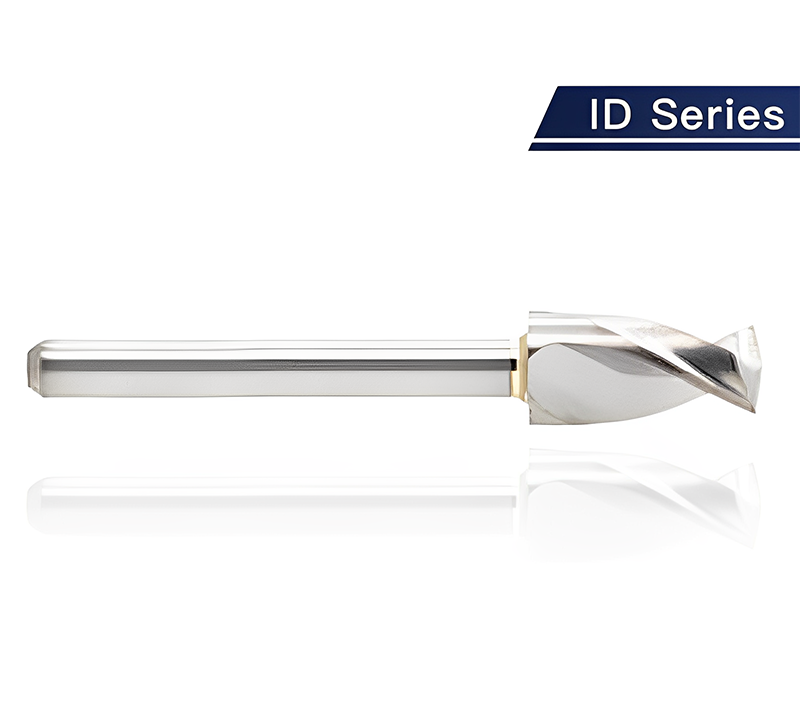

PCB Inverse Drill Bit ID Series |
38.1 | 3.175 | 3.20 | 12.0 |
| 38.1 | 3.175 | 3.25 | 12.0 | |
| 38.1 | 3.175 | 3.30 | 12.0 | |
| 38.1 | 3.175 | 3.35 | 12.0 | |
| 38.1 | 3.175 | 3.40 | 12.0 | |
| 38.1 | 3.175 | 3.45 | 12.0 | |
| 38.1 | 3.175 | 3.50 | 12.0 | |
| 38.1 | 3.175 | 3.55 | 12.0 | |
| 38.1 | 3.175 | 3.60 | 12.0 | |
| 38.1 | 3.175 | 3.65 | 12.0 | |
| 38.1 | 3.175 | 3.70 | 12.0 | |
| 38.1 | 3.175 | 3.75 | 12.0 | |
| 38.1 | 3.175 | 3.80 | 12.0 | |
| 38.1 | 3.175 | 3.85 | 12.0 | |
| 38.1 | 3.175 | 3.90 | 12.0 | |
| 38.1 | 3.175 | 3.95 | 12.0 | |
| 38.1 | 3.175 | 4.00 | 12.0 | |
| 38.1 | 3.175 | 4.05 | 12.0 | |
| 38.1 | 3.175 | 4.10 | 12.0 | |
| 38.1 | 3.175 | 4.15 | 12.0 | |
| 38.1 | 3.175 | 4.20 | 12.0 | |
| 38.1 | 3.175 | 4.25 | 12.0 | |
| 38.1 | 3.175 | 4.30 | 12.0 | |
| 38.1 | 3.175 | 4.35 | 12.0 | |
| 38.1 | 3.175 | 4.40 | 12.0 | |
| 38.1 | 3.175 | 4.45 | 12.0 | |
| 38.1 | 3.175 | 4.50 | 12.0 | |
| 38.1 | 3.175 | 4.55 | 12.0 | |
| 38.1 | 3.175 | 4.60 | 12.0 | |
| 38.1 | 3.175 | 4.65 | 12.0 | |
| 38.1 | 3.175 | 4.70 | 12.0 | |
| 38.1 | 3.175 | 4.75 | 12.0 | |
| 38.1 | 3.175 | 4.80 | 12.0 | |
| 38.1 | 3.175 | 4.85 | 12.0 | |
| 38.1 | 3.175 | 4.90 | 12.0 | |
| 38.1 | 3.175 | 4.95 | 12.0 | |
| 38.1 | 3.175 | 5.00 | 12.0 | |
| 38.1 | 3.175 | 5.05 | 12.0 | |
| 38.1 | 3.175 | 5.10 | 12.0 | |
| 38.1 | 3.175 | 5.15 | 12.0 | |
| 38.1 | 3.175 | 5.20 | 12.0 | |
| 38.1 | 3.175 | 5.25 | 12.0 | |
| 38.1 | 3.175 | 5.30 | 12.0 | |
| 38.1 | 3.175 | 5.35 | 12.0 | |
| 38.1 | 3.175 | 5.40 | 12.0 | |
| 38.1 | 3.175 | 5.45 | 12.0 | |
| 38.1 | 3.175 | 5.50 | 12.0 | |
| 38.1 | 3.175 | 5.55 | 12.0 | |
| 38.1 | 3.175 | 5.60 | 12.0 | |
| 38.1 | 3.175 | 5.65 | 12.0 | |
| 38.1 | 3.175 | 5.70 | 12.0 | |
| 38.1 | 3.175 | 5.75 | 12.0 | |
| 38.1 | 3.175 | 5.80 | 12.0 | |
| 38.1 | 3.175 | 5.85 | 12.0 | |
| 38.1 | 3.175 | 5.90 | 12.0 | |
| 38.1 | 3.175 | 5.95 | 12.0 | |
| 38.1 | 3.175 | 6.00 | 12.0 | |
| 38.1 | 3.175 | 6.50 | 12.0 |
