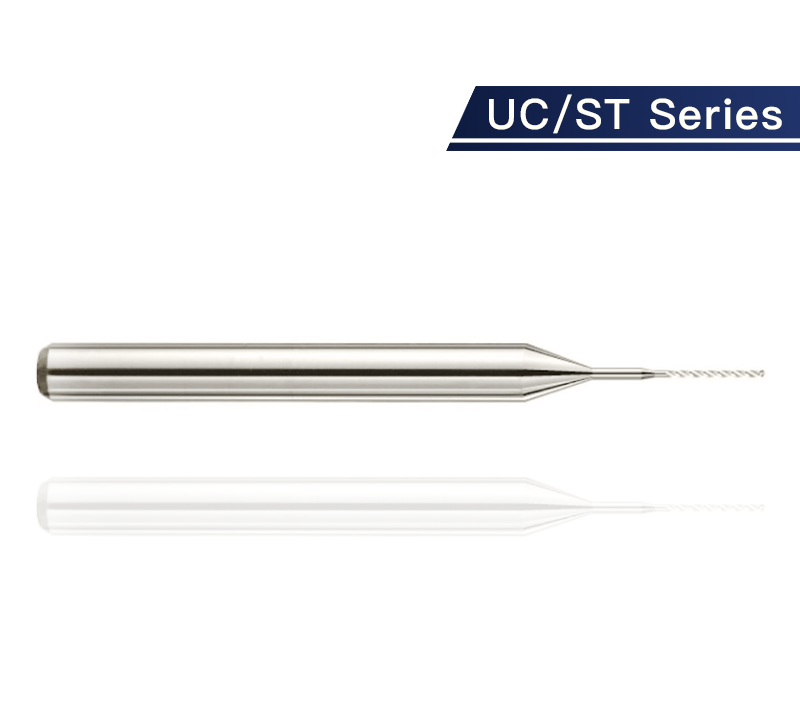

PCB ML/Hi-Tg Drill Bit
- UC/ST Under Cutting/ Standard Type
- For multi-layer, high aspect ratio and High-Tg boards
Unit: mm
| Product | Type | Overall Length | Shank Diameter | Flute Diameter | Flute Length |
| PCB ML/Hi-Tg Drill Bit | UC/ST | 38.1 | 3.175 | 0.20 | 3.50 |
| UC/ST | 38.1 | 3.175 | 0.20 | 4.00 | |
| UC/ST | 38.1 | 3.175 | 0.25 | 4.00 | |
| UC/ST | 38.1 | 3.175 | 0.25 | 4.50 | |
| UC/ST | 38.1 | 3.175 | 0.25 | 5.00 | |
| UC/ST | 38.1 | 3.175 | 0.275 | 4.25 | |
| UC/ST | 38.1 | 3.175 | 0.275 | 5.00 | |
| UC/ST | 38.1 | 3.175 | 0.30 | 5.50 | |
| UC/ST | 38.1 | 3.175 | 0.30 | 5.50 | |
| UC/ST | 38.1 | 3.175 | 0.40 | 5.50 | |
| UC/ST | 38.1 | 3.175 | 0.40 | 7.00 | |
| UC/ST | 38.1 | 3.175 | 0.45 | 7.00 | |
| UC/ST | 38.1 | 3.175 | 0.50 | 8.50 | |
| UC/ST | 38.1 | 3.175 | 0.55 | 8.50 |
