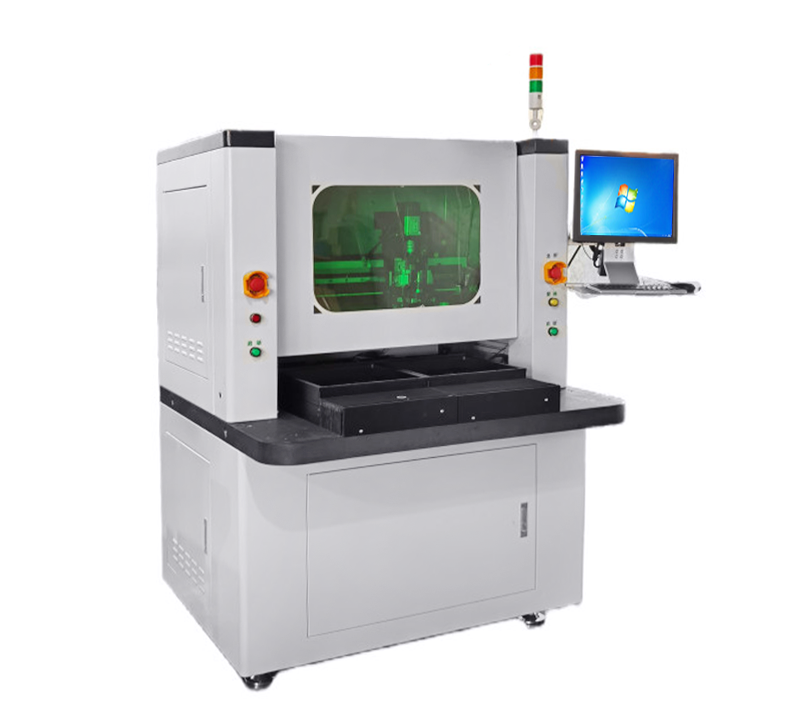

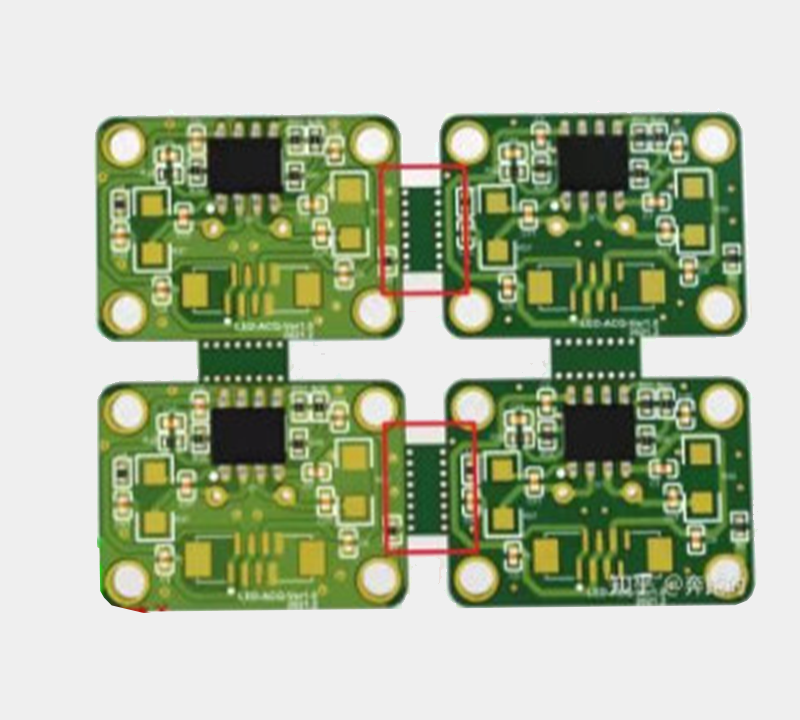

PCB Router Depaneling for Computer Industry with 0.001mm Axis Precision
- Height Offset: 60-110mm
- Positioning Repeatability: 0.001mm
- Axis Working Area (max): 680mm x 360mm x 50mm
- Spindle: 50000rpm/min
- Protect: Self/Wind Cooling
- Name: PCB Router
- High Light:
- 0.001mm PCB Router Depaneling
- Computer Industry PCB Router Depaneling
Hardware
- SPINDLE Morning Star spindle and inverter
- CCD : Sony 520 line industrial cameras
- LENS : Computar EX2C
- Screw : TBI Precision ground ball screw imports
- Guide : HIWIN widening Imported linear guide rail
- MOTOR : JiaBao LCF Series
- I/O CONTRONL CARD : HFC PCI-9074
- DRIVER CONTRONL CARD : HFC PCI-9074
- I/O CARD : PCI-9074-64pcs/-38pcs
- Static cleanup : STATIC-ST401A Series
- Computer : RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
- Machine interface : AOC LCD17",Logitech mouse
- Control system：Windows XP Professional (Service3, v.3244)
- Operation GUI：Chinese Windows XP
- Program edit：Inline
- Vision system：CCD AOTU offset
- Control system：F 1.0.2 version
- Dimensions(W*D*H) : 1220mm*1450mm*1420mm
- Weight : 550KG
- Height offset : 60~110mm
- Manipulator
- Motor type : JiaBao series
- Positioning repeatability : 0.001mm
- Axis working area(max) : 680mm*360mm*50mm
- Work station
- PCB fixation : standard,specialization
- PCB loading/unloading : manual
- PCB size (max) : 322mm*322mm
- PCB thick (max) : 5mm
- Fixturing
- Rigidity fixturing : standard
- Fixturing fixation : machinery
- Spindle Motor
- Power : 400W
- Spindle : 50000rpm/min
- Protect : self/wind cooling
- Change cutter : Specialization
- Routing capability
- Cutting speed(max.) : 100mm/s
- Driving speed(max.) : 3000mm/s
- Precision of cutting :0.01mm
- Vacuum System
- Vacuum power:2.2KW AC 380V
- Vacuum plumb
- Utilities
- Power : 2.2KW AC380V
- Air supply : 2~5KG/cm2
- Program edit :Inline
- Function edit : Line,arc,circula , U-curve
- Program storage : HDD
- Vision system : SONE colour CCD
- milling cutter offset : AUTO
- Vacuum setup : AUTO
- Operation Monitors
- Iindicator : Iindicator Machine state
- tool check : Automatic detection tool life , the use of time testing
- Motor protect : Have overheating, overload , low voltage protection function
- motor over loading check : Have Overload, the line is normal, low voltage protection function
- Tool usable time : Automatic detection tool life ,
- Data statistic : Separate board model , separating count , diverse counting methods
- Error record : Software automatically records all alarms memory of machines
- III. Accuracy
- Axis precision : 0.001mm
- Cutting precision : 0.1mm
- IV. Safety
- Working area protect : With four sealed protection
- Door sensor: Front and rear safety door micro-switch sensor (optional)
- Exigency stop button
