PCB Scoring Machine With Ceramic Capacitor
- Cutting Length: 330mm
- Material For The Blades: High Speed Steel
- Type: Pneumatic Type
- Blades Shape: Two Linear Blades
Feature
Specifications

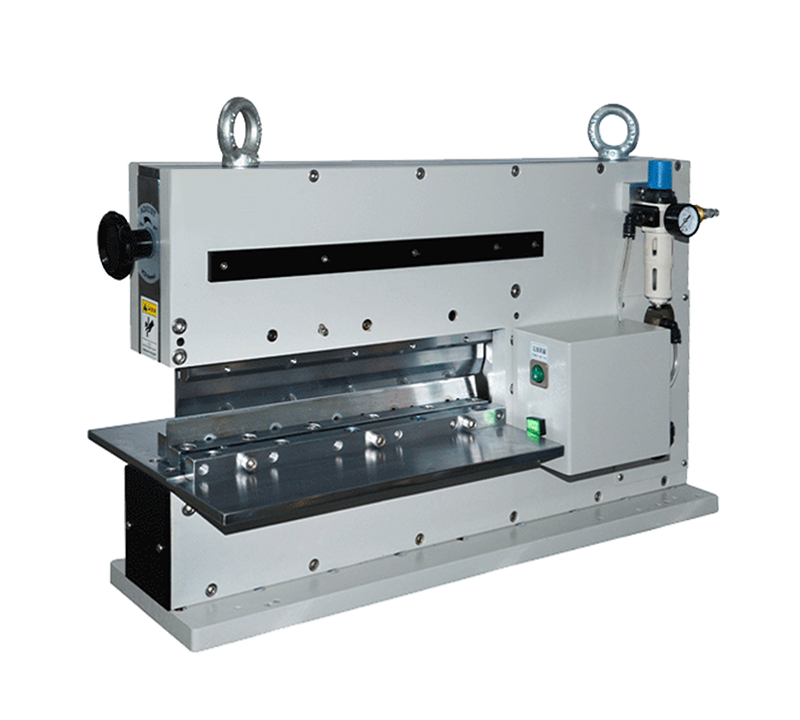

- Motorized Linear Blade Depanelizer

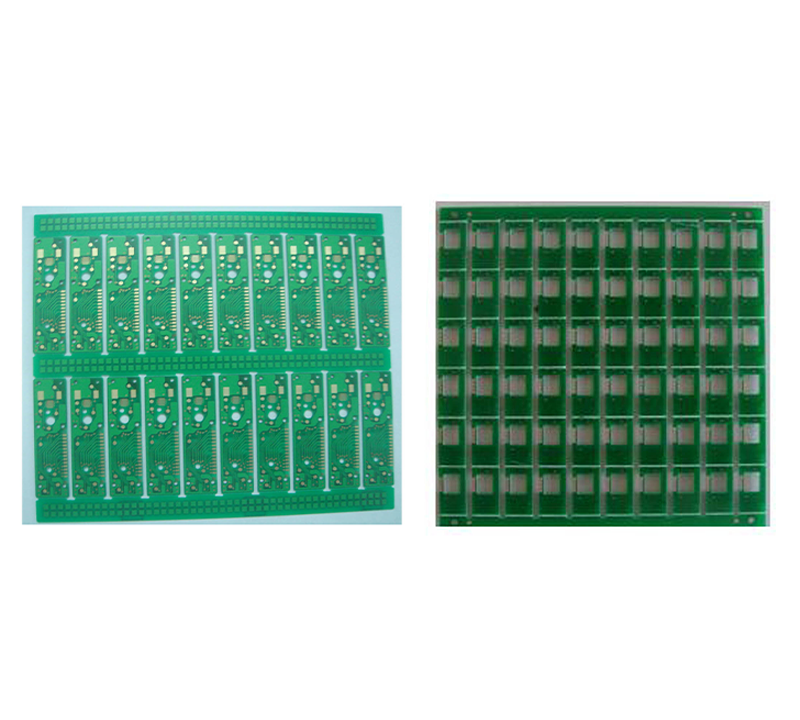

- Safely cut circuit boards, Parts( ceramic capacitors) are only 0.5 mm from the score line
- Panels cannot be inserted into the blades except on the score line
- Pneumatically driven
- Handles high components up to 1"
- Avoid the bow wave that may occur with the round blade
- Easily adjust the distance between blades.
Specifications
|
The Longest Minimize: |
330mm |
|
Size: |
620mm x 230mm x 400mm |
|
Minimize thickness: |
0.3-3.5mm |
|
Machine Weight: |
165kg |
