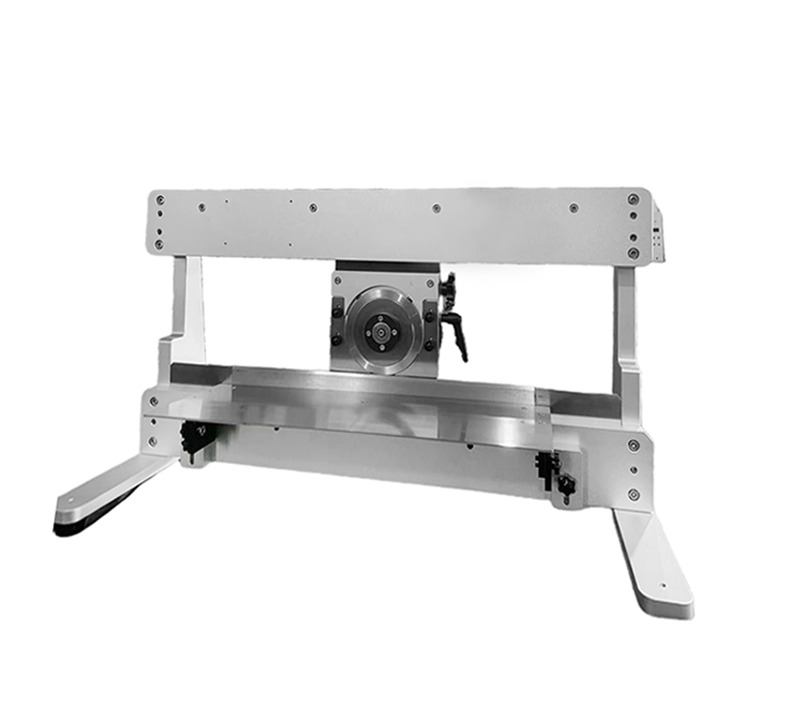

PCB Separator Machine
- Blade Material: High Speed Steel
- Power: 110/220V
- Blades: Linear And Round
- Type: Manual Driven
- Advantages:
- 110V PCB Board Making Machine
- 110V PCB Separator Machine
- 0.6mm PCB Board Making Machine
Feature
Specification
- Manual cut lower linear blade by round knife to reduce stress
- Separate pre-scored PCB assembly to s to eliminate stress on PCB or components
- One-touch device for cutting length.
- Separating speed is adjusted by a rotary knob
- it's able to deal with Intermittent scoring or cut-outs
- Protruding Board makes a precise cut.
- Large stainless steel platforms on both sides prevent the plate from shaking, and the height and angle of the table are adjustable.
- Optional PCB conveyor belt is used to remove finished board
- Adjustable gap between circular and linear blades to accommodate different groove depths and compensate for blade wear.
Specification
|
Model |
460 |
|
Max. PCB singulation length |
460mm |
|
PCB singulation Thickness |
0.6-3.5mm |
|
PCB singulation speed control |
by hand |
|
PCB singulation machine size |
787x400x436mm |
|
PCB singulation machine weight |
30Kg |
|
Model |
720 |
|
Max. PCB singulation length |
720mm |
|
PCB singulation thickness |
0.6-3.5mm |
|
PCB singulation speed control |
by hand |
|
PCB singulation machine size |
1027x400x436mm |
|
PCB singulation machine weight |
45kg |
