Routering, Drilling & Depaneling

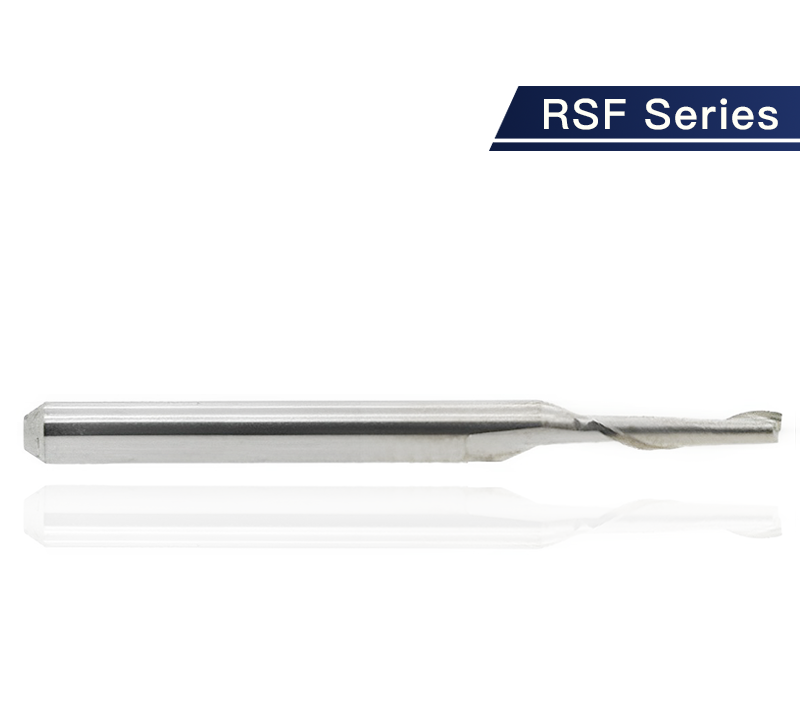

PCB Single Flute Router Bit
- RSF Series
- For PCB of Cu, FPCB, Teflon and softer material
- Better chip removing

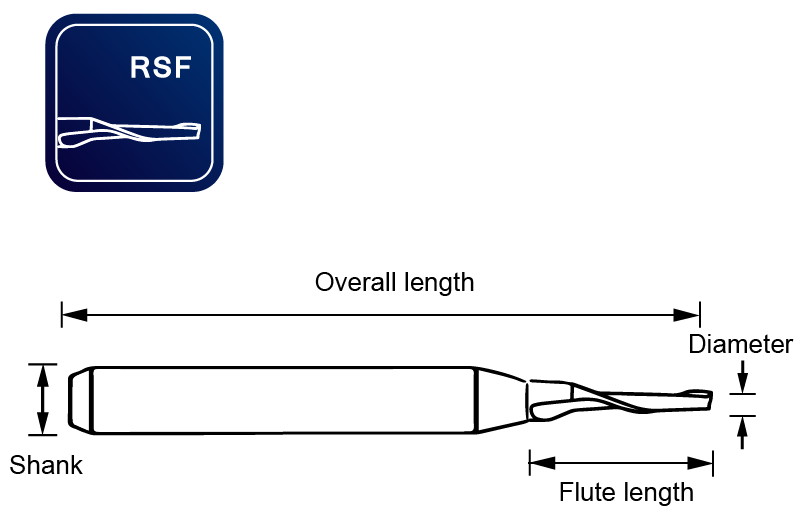

Unit：mm
|
Product |
Overall Length |
Shank Diameter |
Flute Diameter |
Flute Length |
|
PCB Single Flute Router Bit RSF Series |
38.1 |
3.175 |
0.6 |
3.0 |
|
38.1 |
3.175 |
0.7 |
3.0 |
|
|
38.1 |
3.175 |
0.8 |
3.0 |
|
|
38.1 |
3.175 |
0.9 |
3.0 |
|
|
38.1 |
3.175 |
1.0 |
3.0 |
|
|
38.1 |
3.175 |
1.1 |
3.0 |
|
|
38.1 |
3.175 |
1.2 |
4.0 |
|
|
38.1 |
3.175 |
1.3 |
4.0 |
|
|
38.1 |
3.175 |
1.4 |
4.0 |
|
|
38.1 |
3.175 |
1.5 |
4.0 |
|
|
38.1 |
3.175 |
1.6 |
5.0 |
|
|
38.1 |
3.175 |
1.7 |
5.0 |
|
|
38.1 |
3.175 |
1.8 |
5.0 |
|
|
38.1 |
3.175 |
1.9 |
5.0 |
|
|
38.1 |
3.175 |
2.0 |
8.0 |
|
|
38.1 |
3.175 |
2.4 |
8.0 |
|
|
38.1 |
3.175 |
3.0 |
9.0 |
|
|
38.1 |
3.175 |
3.175 |
9.0 |
