Routering, Drilling & Depaneling
Unit: mm

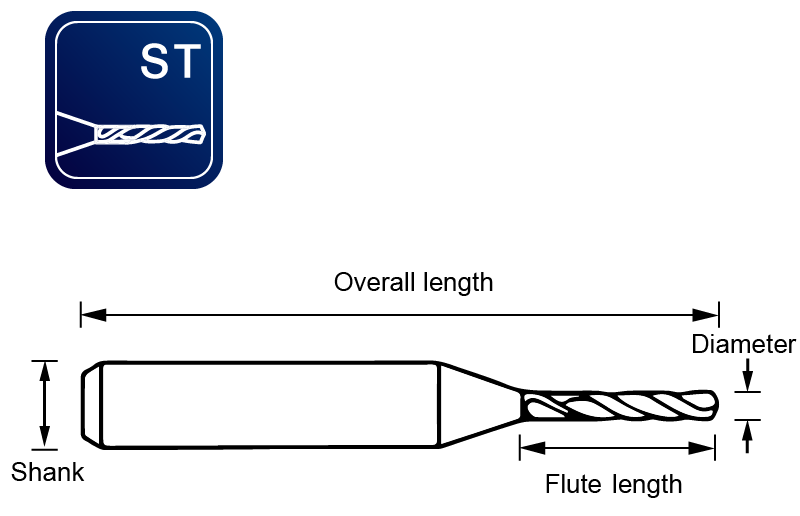

| Product | Overall Length | Shank Diameter | Flute Diameter | Flute Length |

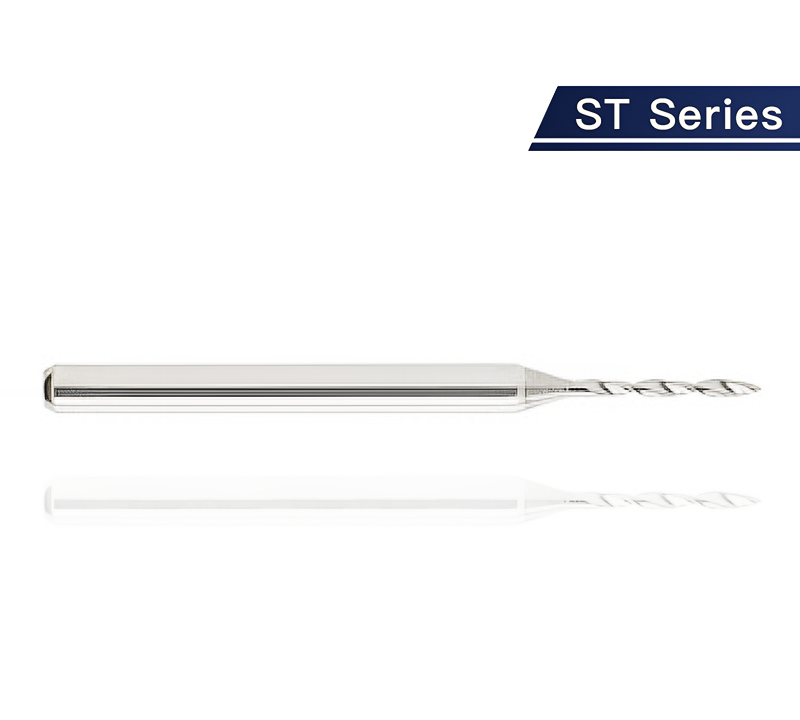

PCB Standard Drill Bit ST Series |
38.1 | 3.175 | 0.50 | 8.5 |
| 38.1 | 3.175 | 0.55 | 8.5 | |
| 38.1 | 3.175 | 0.60 | 8.5 | |
| 38.1 | 3.175 | 0.65 | 8.5 | |
| 38.1 | 3.175 | 0.70 | 10.0 | |
| 38.1 | 3.175 | 0.75 | 10.0 | |
| 38.1 | 3.175 | 0.80 | 10.0 | |
| 38.1 | 3.175 | 0.85 | 10.0 | |
| 38.1 | 3.175 | 0.90 | 10.0 | |
| 38.1 | 3.175 | 0.05 | 10.0 | |
| 38.1 | 3.175 | 1.00 | 10.0 | |
| 38.1 | 3.175 | 1.05 | 10.0 | |
| 38.1 | 3.175 | 1.10 | 10.0 | |
| 38.1 | 3.175 | 1.15 | 10.0 | |
| 38.1 | 3.175 | 1.20 | 10.0 | |
| 38.1 | 3.175 | 1.25 | 12.0 | |
| 38.1 | 3.175 | 1.30 | 12.0 | |
| 38.1 | 3.175 | 1.35 | 12.0 | |
| 38.1 | 3.175 | 1.40 | 12.0 | |
| 38.1 | 3.175 | 1.45 | 12.0 | |
| 38.1 | 3.175 | 1.50 | 12.0 | |
| 38.1 | 3.175 | 1.55 | 12.0 | |
| 38.1 | 3.175 | 1.60 | 12.0 | |
| 38.1 | 3.175 | 1.65 | 12.0 | |
| 38.1 | 3.175 | 1.70 | 12.0 | |
| 38.1 | 3.175 | 1.75 | 12.0 | |
| 38.1 | 3.175 | 1.80 | 12.0 | |
| 38.1 | 3.175 | 1.85 | 12.0 | |
| 38.1 | 3.175 | 1.90 | 12.0 | |
| 38.1 | 3.175 | 1.95 | 12.0 | |
| 38.1 | 3.175 | 2.00 | 12.0 | |
| 38.1 | 3.175 | 2.05 | 12.0 | |
| 38.1 | 3.175 | 2.10 | 12.0 | |
| 38.1 | 3.175 | 2.15 | 12.0 | |
| 38.1 | 3.175 | 2.20 | 12.0 | |
| 38.1 | 3.175 | 2.25 | 12.0 | |
| 38.1 | 3.175 | 2.30 | 12.0 | |
| 38.1 | 3.175 | 2.35 | 12.0 | |
| 38.1 | 3.175 | 2.40 | 12.0 | |
| 38.1 | 3.175 | 2.45 | 12.0 | |
| 38.1 | 3.175 | 2.50 | 12.0 | |
| 38.1 | 3.175 | 2.55 | 12.0 | |
| 38.1 | 3.175 | 2.60 | 12.0 | |
| 38.1 | 3.175 | 2.70 | 12.0 | |
| 38.1 | 3.175 | 2.75 | 12.0 | |
| 38.1 | 3.175 | 2.80 | 12.0 | |
| 38.1 | 3.175 | 2.85 | 12.0 | |
| 38.1 | 3.175 | 2.90 | 12.0 | |
| 38.1 | 3.175 | 2.95 | 12.0 | |
| 38.1 | 3.175 | 3.00 | 12.0 | |
| 38.1 | 3.175 | 3.05 | 12.0 | |
| 38.1 | 3.175 | 3.10 | 12.0 | |
| 38.1 | 3.175 | 3.15 | 12.0 | |
| 38.1 | 3.175 | 3.175 | 12.0 |
