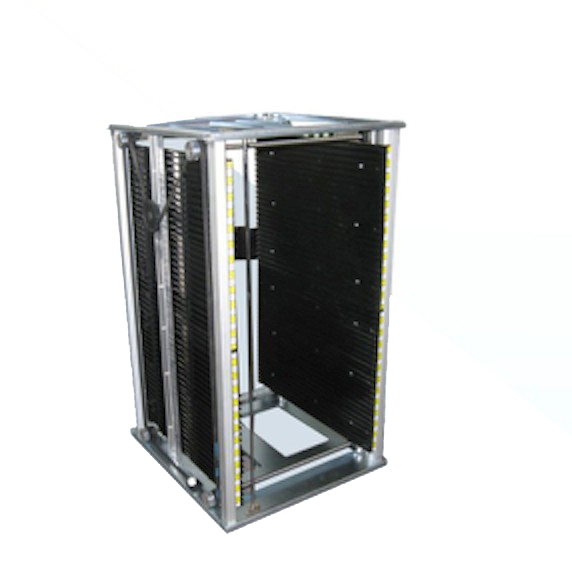

Belt-Drive PCB Storage Magazine/Rack
Belt-Drive PCB Storage Magazine/Rack
Features:
-Surface Resistance: 104-108Ω (100 ℃)
-External dimension: 355*320*563mm, available for storing 50 pieces of PCB plates
-Size of PCBs to be accommodated: 355*(50-250)
-Side guide slot, with depth of 4mm, width of 5.5mm and pitch of 10mm
-The top and bottom boards are made of metal; it is the synchronous belt distance adjustment
-Weight: 7Kgs
Features:
-Surface Resistance: 104-108Ω (100 ℃)
-External dimension: 355*320*563mm, available for storing 50 pieces of PCB plates
-Size of PCBs to be accommodated: 355*(50-250)
-Side guide slot, with depth of 4mm, width of 5.5mm and pitch of 10mm
-The top and bottom boards are made of metal; it is the synchronous belt distance adjustment
-Weight: 7Kgs
Belt-Drive PCB Storage Magazine/Rack
| Outer Size /L x W x H (mm) | Depth (mm) | Width (mm) | Pitch (mm) | PCB Slots | Adjustable Width (mm) Ref. Position (mm) | Ref. Position (mm) | Base Material |
Heat-resistant Temp (℃) |
Adjustable Type |
| 355*320*563 | 4 | 5.5 | 10 5 | 50 | 355* (50~250) 34 | 34 | Metal | 100 ℃ | Belt Drive |
