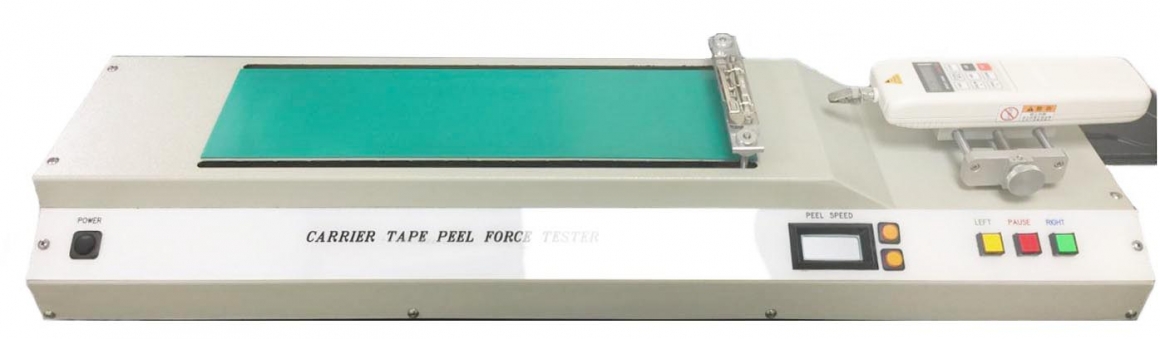

Peel Force Tester
P233 is used to confirm, and record proper sealing strength of cover tape to carrier tape.
Features:
•P233 is two-way information transmission (Microcomputer chip control-Machine) and friendly used.
•It is compatible with WINDOWS XP/WIN7 and easy installation
•Powerful software system:
Key in: Company name, operator name, files name
Parameter setting: limit value of peel force, data delay readout function, peel length and speed, and manual / automatic operation modes.
•Data Input: cover tape specification, carrier tape specification, sealing mode, type of Taping machine, testing environment, and calculation of all input parameter including maximum peel force value, minimum peel force value, range of peel force, average peel force value, and standard deviation test.
•The force gage can be adjusted transversely or angularly, and the testing sample is easily aligned.
•The height adjustment device of sample is suited for all Ko value.
•Peel angles can be set from 165-180° and won’t be change during test operation.
•Auto- zero initial force before starting the test and system.

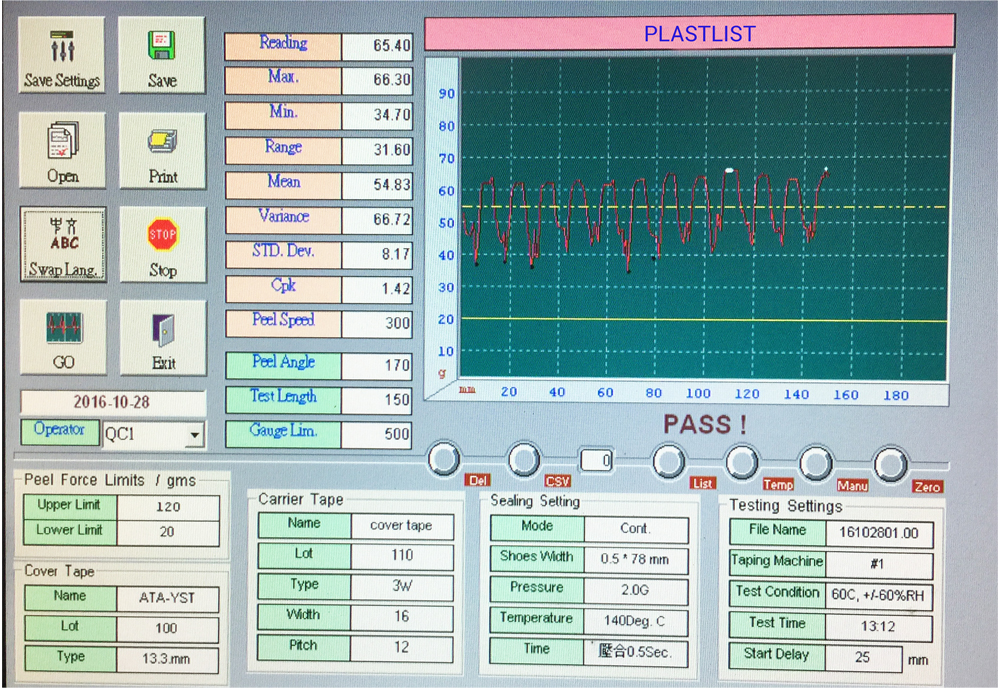

•The test curve is automatically scaled with the test distance and the peel force.
•Language switch function: Chinese (Traditional / Simplified) /English
-It is able to output color print of test report and quality control inspection checklists in both English and Chinese.
Specification:
•P233 is two-way information transmission (Microcomputer chip control-Machine) and friendly used.
•It is compatible with WINDOWS XP/WIN7 and easy installation
•Powerful software system:
Key in: Company name, operator name, files name
Parameter setting: limit value of peel force, data delay readout function, peel length and speed, and manual / automatic operation modes.
•Data Input: cover tape specification, carrier tape specification, sealing mode, type of Taping machine, testing environment, and calculation of all input parameter including maximum peel force value, minimum peel force value, range of peel force, average peel force value, and standard deviation test.
•The force gage can be adjusted transversely or angularly, and the testing sample is easily aligned.
•The height adjustment device of sample is suited for all Ko value.
•Peel angles can be set from 165-180° and won’t be change during test operation.
•Auto- zero initial force before starting the test and system.
•The test curve is automatically scaled with the test distance and the peel force.
•Language switch function: Chinese (Traditional / Simplified) /English
-It is able to output color print of test report and quality control inspection checklists in both English and Chinese.
Specification:
| Peel Angel | 165-180 degree |
| Pull Length (mm) | 50-200 |
| Test Speed (mm/min) | Max 300 |
| Japan ALGOL electronic Rally | Display range MAX 1000.0 gf. |
| Power | Single-phase AC 110V / AC 220V. |
| Dimensions (mm) | L900*W230*H120 |
| Weight (kg) | 25 |
