    Adhesive Sealant & Lubricant

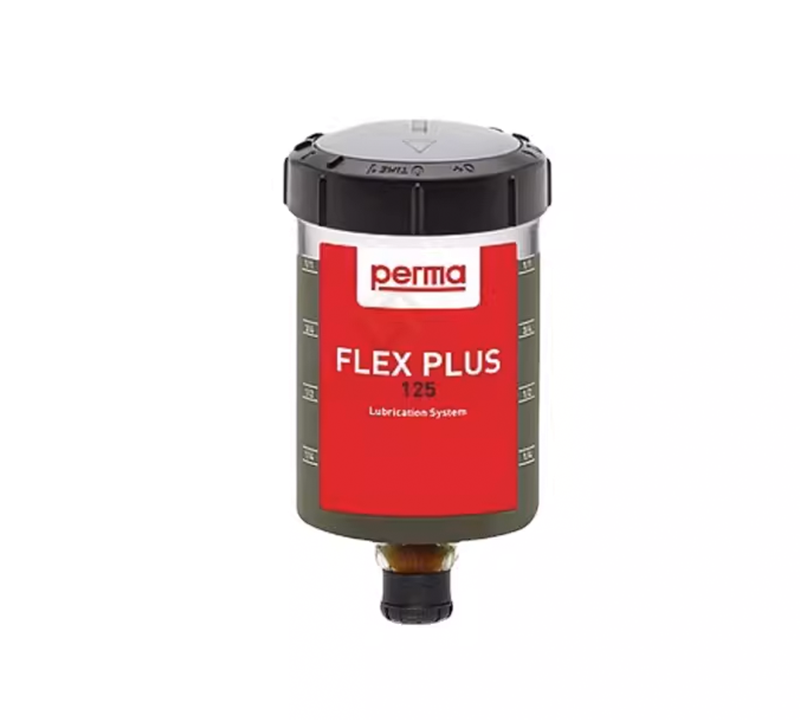

    PERMA FLEX PLUS-125-SF01

    • PLUS-125-SF01
    • PLUS-125-SF02


    Applications
    perma-flex-plus-60-sf01-2
    perma FLEX is a single-point lubrication system for all types of applications and industries. Ingress protection to IP 68 level guarantees reliable lubrication in extremely dusty and moist environments. The wide operating temperature range makes it suitable for many applications indoors and outdoors. If necessary, the discharge period can be adjusted even after activation. It can be switched off during longer non-operation periods.

    Product characteristics
    All-in-one system with dial for discharge period setting: 1, 2, 3 ... 12 months
    csm_FLEX_Eigenschaft_1_2014_10_17_b5e02b9eac
    • Ready-to-use system / no assembly necessary
    • Quick and easy activation with dial
    • Discharge 1-12 months / in monthly steps = more flexibility
    Reliable operation at -4 °F to 140 °F / -20 °C to 60 °C
    csm_FLEX_Eigenschaft_2_20190321_53bac4ef35
    • For use in hot and cold environments
    • Year-round use for outdoor applications
    Ex-proof certification
    FM certification
    IP 68 protection

    csm_FLEX_Eigenschaft_3_2014_10_17_7ae2e9bab8
    • Safe lubrication in dangerous and critical areas
    • Reliable lubrication in moist and dusty areas
    • Increased workplace safety
    Technical Data
    Drive Electrochemical reaction via gas generating unit
    Housing Transparent plastic
    Discharge period 1, 2, 3, ..., 12 months
    Lubricant volume 60 cc (2.03 fl. oz.) or 125 cc (4.23 fl. oz.)
    Operating temperature -4 °F to 140 °F / -20 °C to 60 °C
    Pressure build-up Max. 75 psi / 5 bar
    Protection class IP 68
    Lubricants Grease up to NLGI 2 / oil
    Max. tube lengths 2.00 m
    CE
    Ex
    IEC Ex
    FM
