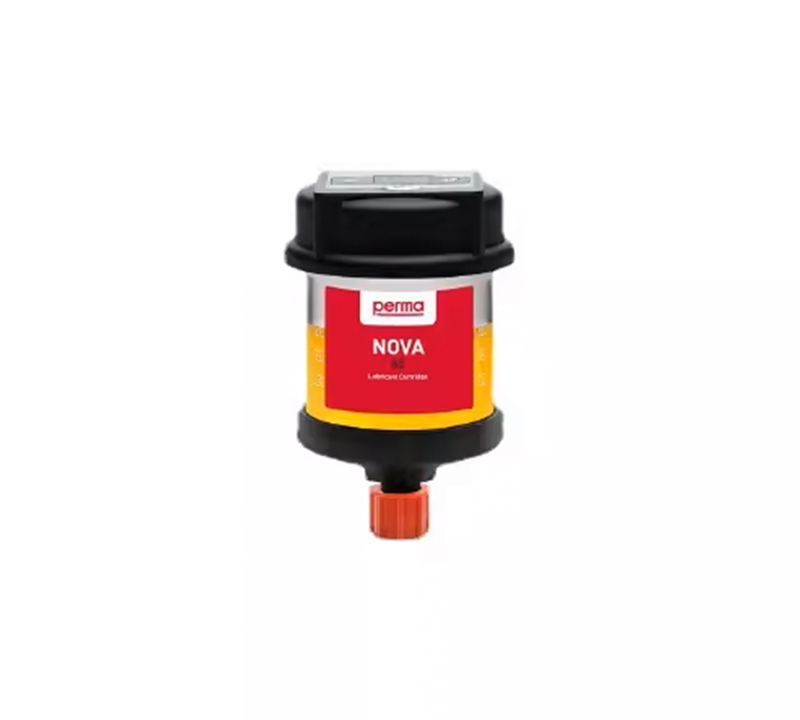

PERMA NOVA-65-SF01

Applications

perma NOVA is especially suited for single-point lubrication of roller and sliding bearings, sliding guides, open gears, gear racks, shaft seals and chains located in areas with considerable temperature variations (e.g. outside installations). The system is protected against dust and water jets when the individual parts are assembled correctly (IP65). perma NOVA with LC 65 cc is ideal for the lubrication of electric motors.

Product characteristics
Electronic control unit with temperature compensation shows discharge period / operating status
LCD display and push button, Setting: 1, 2, 3, ...12 months & LC size

• Reusable NOVA Control unit
• Temperature independent during the entire discharge period
• Accelerated pressure built-up for first discharge within one day
• Simple handling / easy adjustments

System works reliably from -4 °F to 140 °F / -20 °C to 60 °C

• Ideal for applications with considerable temperature variations
• One system for subfreezing as well as high temperature applications
• Integrated support flange for stronger connections

Ex-proof certification
IP 65

• Safe and reliable lubrication in explosive areas
• Increased workplace safety
• Dust-tight and protected against water jets

Technical Data

Drive	Electrochemical reaction via gas generating cells with electronic temperature compensation
Housing	Transparent plastic
Discharge period	1, 2, 3, ..., 12 months
Lubricant volume	65 cc (2.20 fl. oz.) or 125 cc (4.23 fl. oz.)
Operating temperature	-4 °F to 140 °F / -20 °C to 60 °C
Pressure build-up	Max. 87 psi / 6 bar
Number of outlets	1
Protection class	IP 65
Lubricants	Grease up to NLGI2 / oil
Max. tube lengths	2.00 m
CE	✔
Ex	✔
IEC Ex	✔
