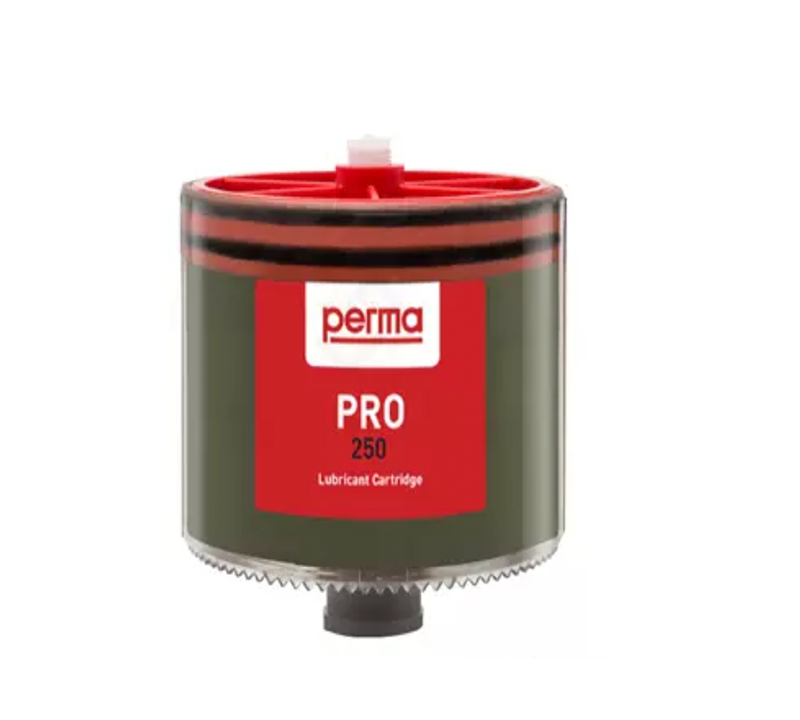

PERMA PRO-LC250-SF02 SF03 SF04 SF05 SF06 SF08 SF9 SF10

 Applications

perma PRO MP-6 is suitable for the lubrication of roller and sliding bearings, linear guides, open gears, spindles, motor shaft seals, generators, pumps, fans and linear guide systems in robots. Applications can be found in all types of industries: from steel to paper, heat and power stations, from mining to automotive.

Product characteristics
​​​​​​Setting via push button with display and LED
Outlet display
LED red/green = function

• Easy configuration of discharge period and outlets
• Display of remaining volume and active outlets
• Status control on display
• Easy to set and change at any time

MP-6 distributor with 6 outlets – Number of active outlets can be user-defined

• Supply of 1 to 6 lubrication points with same lubricant amount
• Precise supply of lubrication points
• Monitoring of lubrication point status

Pressure build-up to 362 psi / 25 bar allows remote mounting up to 16 ft / 5 m per outlet
Additional discharge (purge)

• Installation outside of dangerous areas or at easy-to-reach places increases workplace safety and saves time
• Higher equipment availability, since exchange during running operation possible
• Lubrication point can be purged to clear blockages

Technical Data​​​​​​​

Drive	Electromechanical
Power supply	Battery operation supply 15-30 V
Housing	Metal / Transparent plastic
Discharge period	1 day to 24 months
Lubricant volume	250 cc (8.45 fl. oz.) or 500 cc (16.91 fl. oz.)
Operating temperature	-4 °F to 140 °F / -20 °C to 60 °C
Pressure build-up	362 psi / 25 bar
Number of outlets	1 - 6
Lubricants	Grease up to NLGI 2
Max. tube lengths	5.00 m
CE	✔
UL	✔
