Plugs for pluggable terminal blocks TLP Series
Part No.:

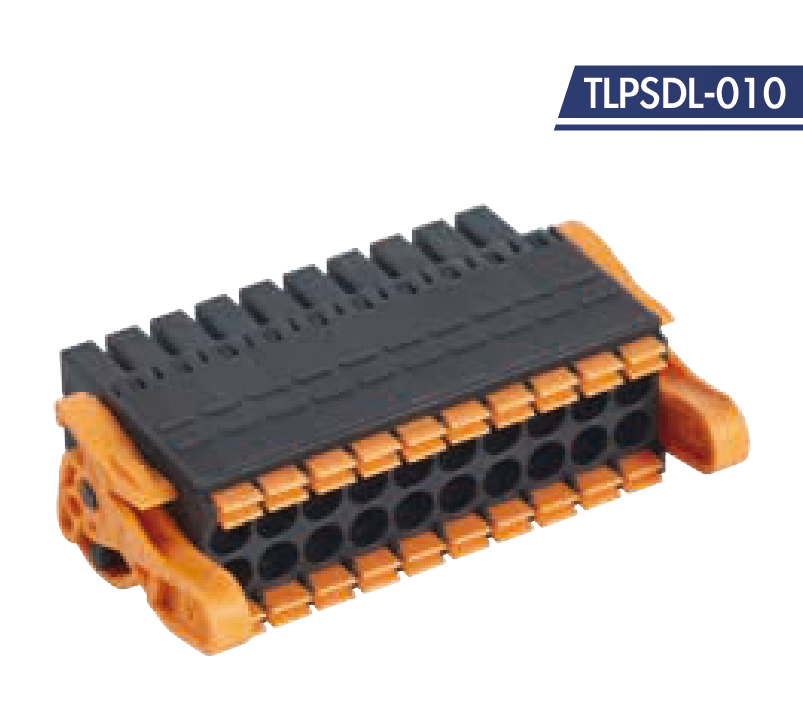

TLPSDL-010
TLPS-011(TLPS-111)
TLPSW-011(TLPSW-111)
TLPS-200V(TLPS-300V)
TLPSW-200V(TLPSW-300V)
TLPS-200R(TLPS-300R)
TLPSDL-010
TLPS-011(TLPS-111)
TLPSW-011(TLPSW-111)
TLPS-200V(TLPS-300V)
TLPSW-200V(TLPSW-300V)
TLPS-200R(TLPS-300R)
 |
||
 |
||
| Technical data | ||
| Pitch | 3.50mm | |
| Approval |  |
 |
| Rated voltage | 300V | 160V |
| Rated current | 8A | 10A |
| Wire range | 28-16AWG | 0.34-1.5mm2 |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSDL-010-04P | |
| : | : | |
| 24 | TLPSDL-010-48P | |

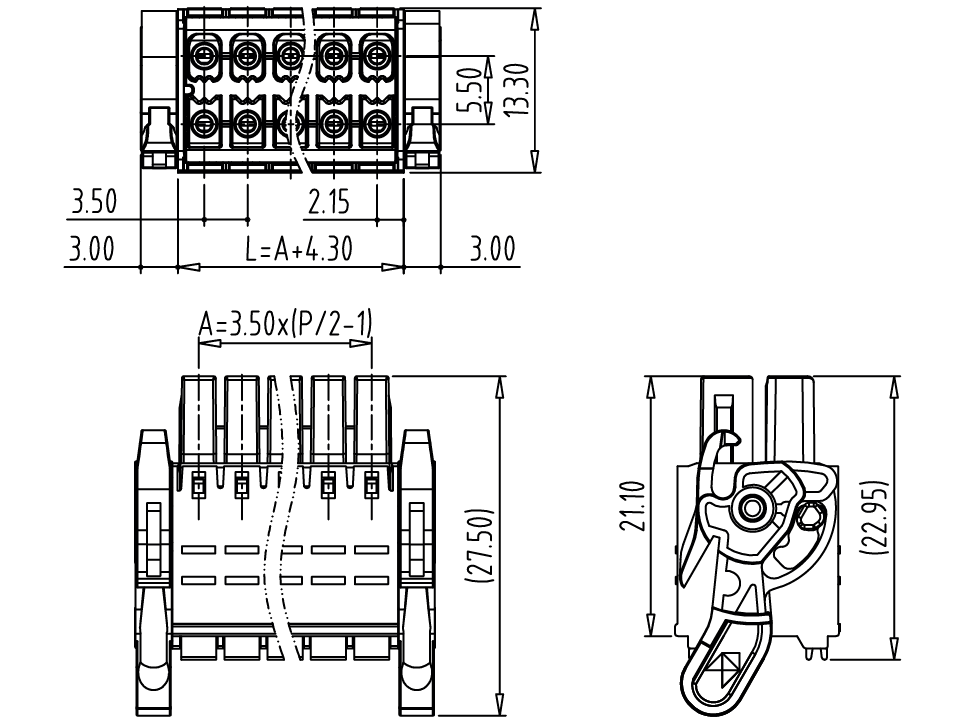

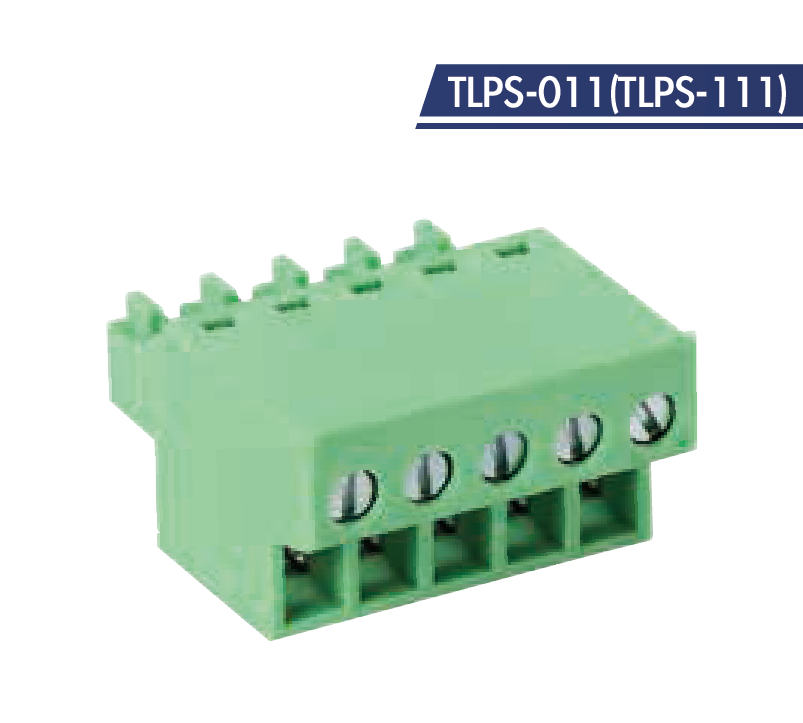

.png "TLPS-011(TLPS-111)") |
||

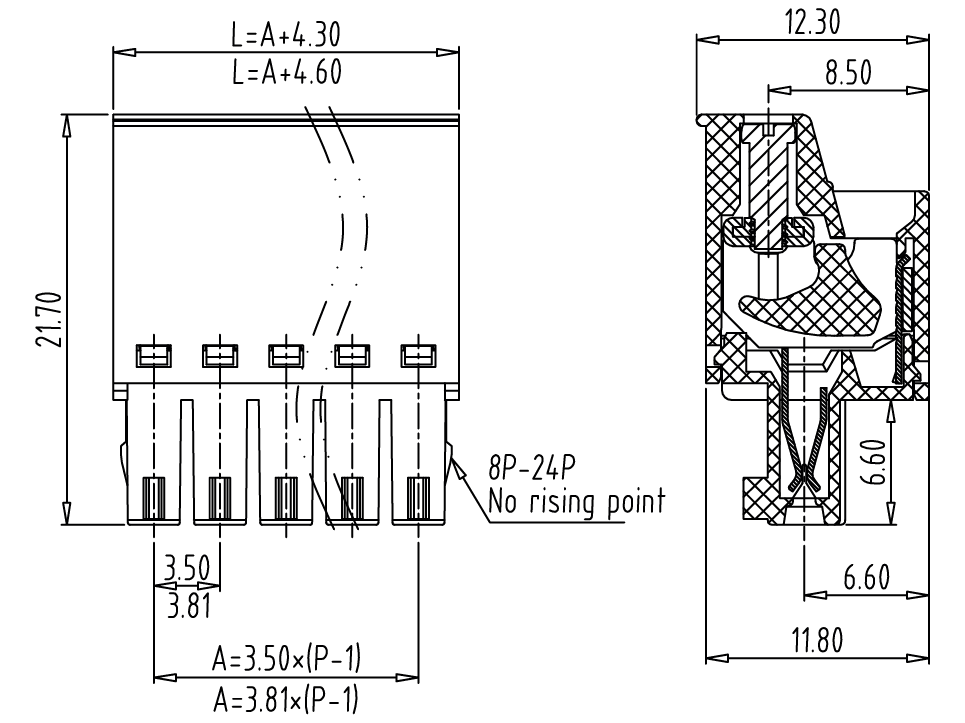

-2.png "TLPS-011(TLPS-111)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | UL(Applying) | IEC(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 8A | 10A |
| Wire range | 30-14AWG | 0.2-1.5mm2 |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-011-02P (TLPS-111-02P) |
|
| : | : | |
| 24 | TLPS-011-24P (TLPS-111-24P) |
|

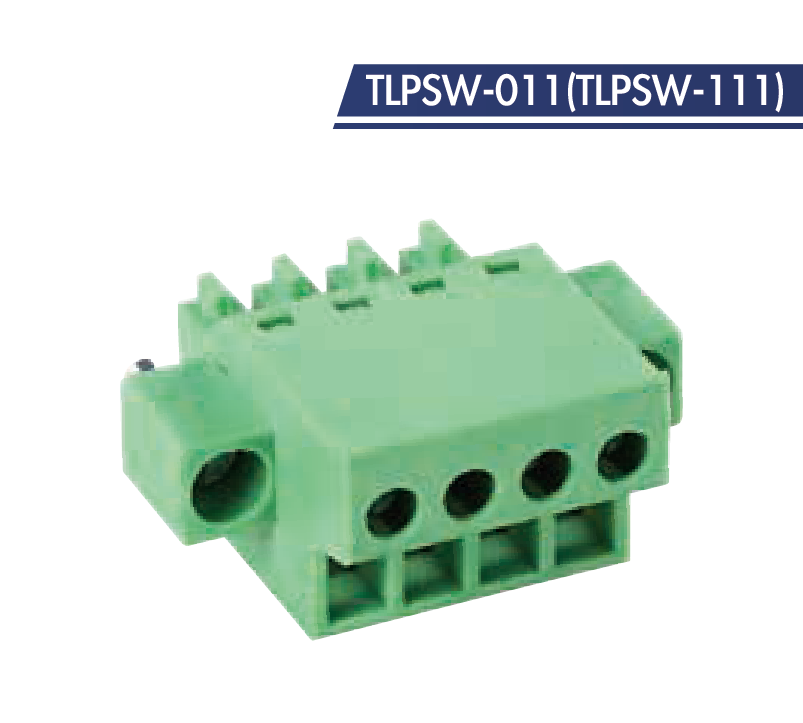

.png "TLPSW-011(TLPSW-111)") |
||

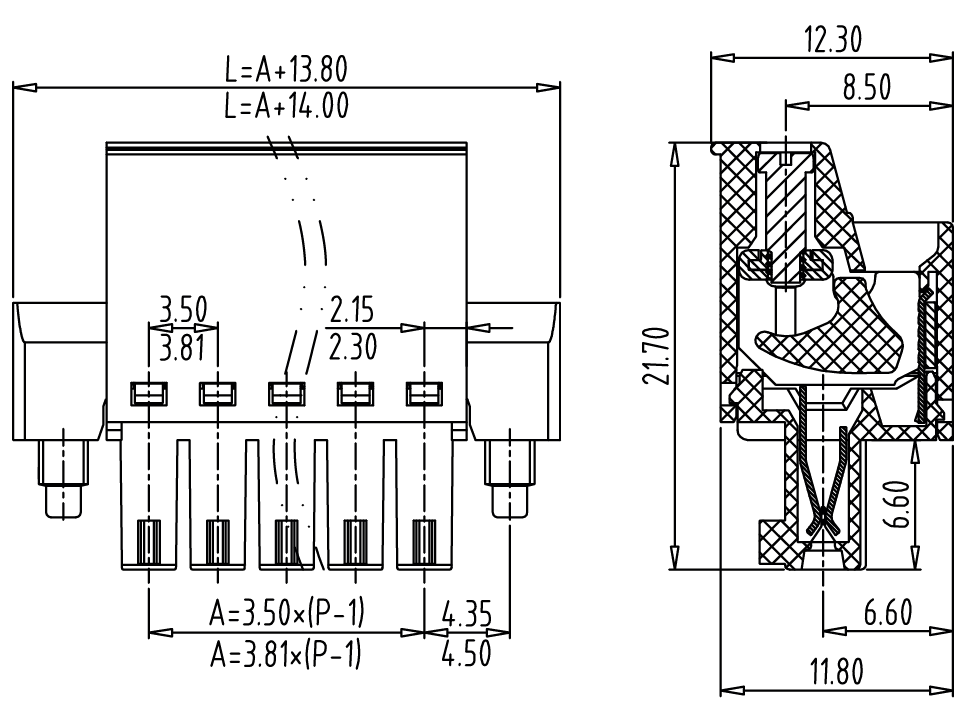

-2.png "TLPSW-011(TLPSW-111)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | UL(Applying) | IEC(Applying) |
| Rated voltage | 300V | 320V |
| Rated current | 8A | 10A |
| Wire range | 30-14AWG | 0.2-1.5mm2 |
| Screw | M2 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-011-02P (TLPSW-111-02P) |
|
| : | : | |
| 24 | TLPSW-011-24P (TLPSW-111-24P) |
|

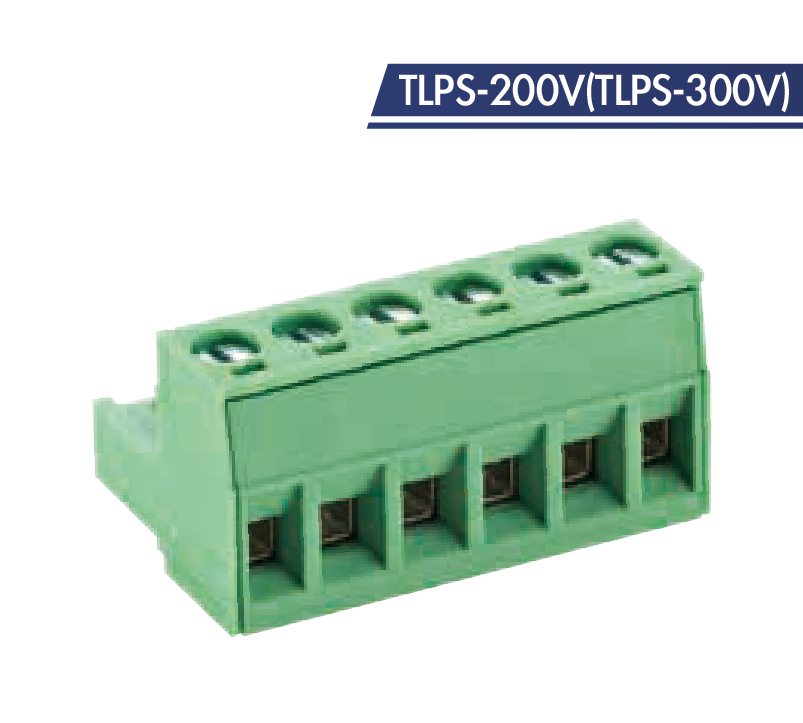

.png "TLPS-200V(TLPS-300V)") |
||

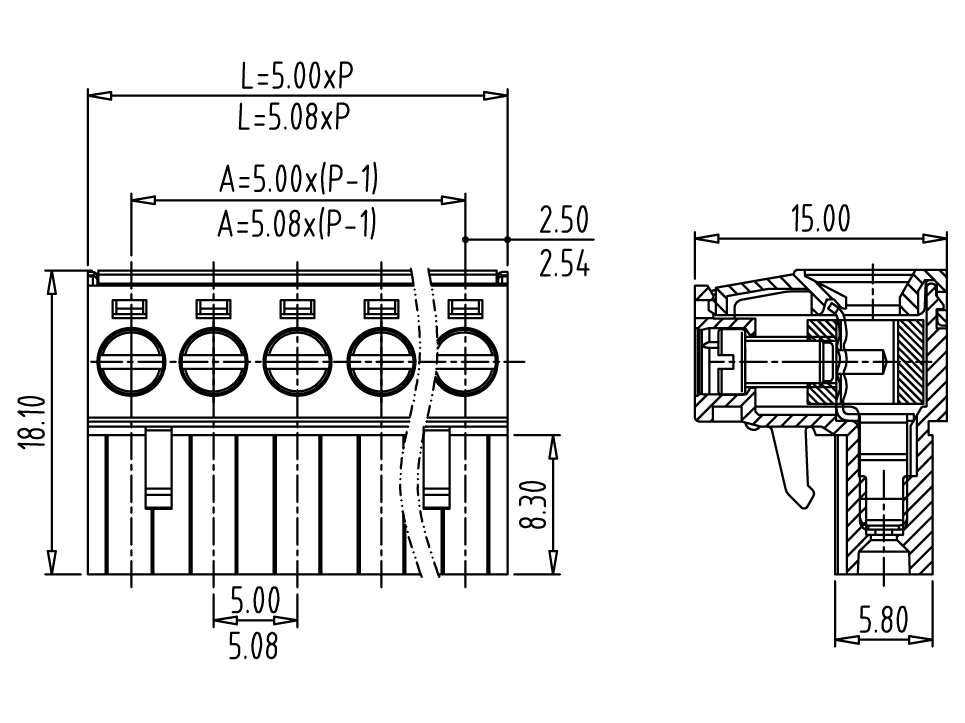

-2.png "TLPS-200V(TLPS-300V)-2") |
||
| Technical data | ||
| Pitch | 3.50mm(3.81mm) | |
| Approval | |
|
| Rated voltage | 300V | 320V |
| Rated current | 8A | 20A |
| Wire range | 30-12AWG | 0.2-2.5mm2 sol/str 4mm2 sol |
| Screw | M3 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-200V-02P (TLPS-300V-02P) |
|
| : | : | |
| 24 | TLPS-200V-24P (TLPS-300V-24P) |
|

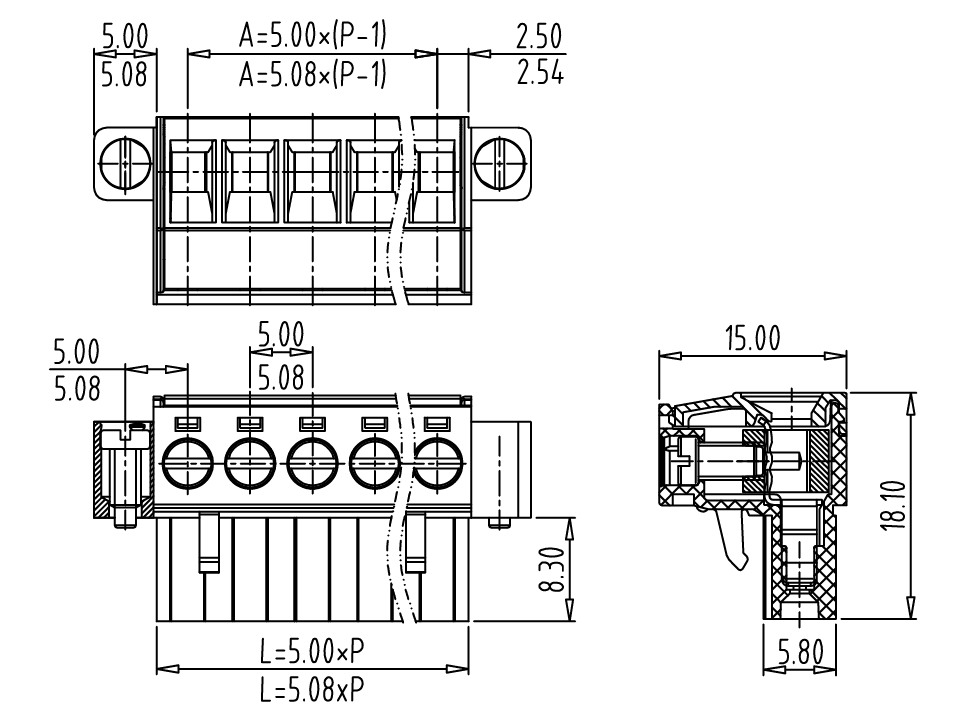

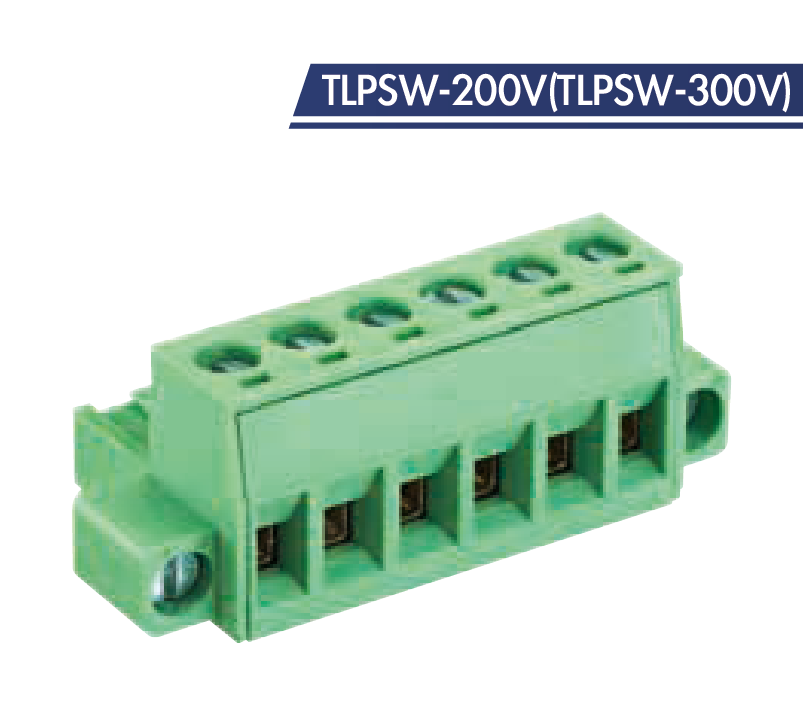

.png "TLPSW-200V(TLPSW-300V)") |
||
-2.png "TLPSW-200V(TLPSW-300V)-2") |
||
| Technical data | ||
| Pitch | 5.00mm(5.08mm) | |
| Approval | |
|
| Rated voltage | 300V | 320V |
| Rated current | 8A | 20A |
| Wire range | 30-14AWG | 0.2-2.5mm2 sol/str 4mm2 sol |
| Screw | M3 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPSW-200V-02P (TLPSW-300V-02P) |
|
| : | : | |
| 24 | TLPSW-200V-24P (TLPSW-300V-24P) |
|

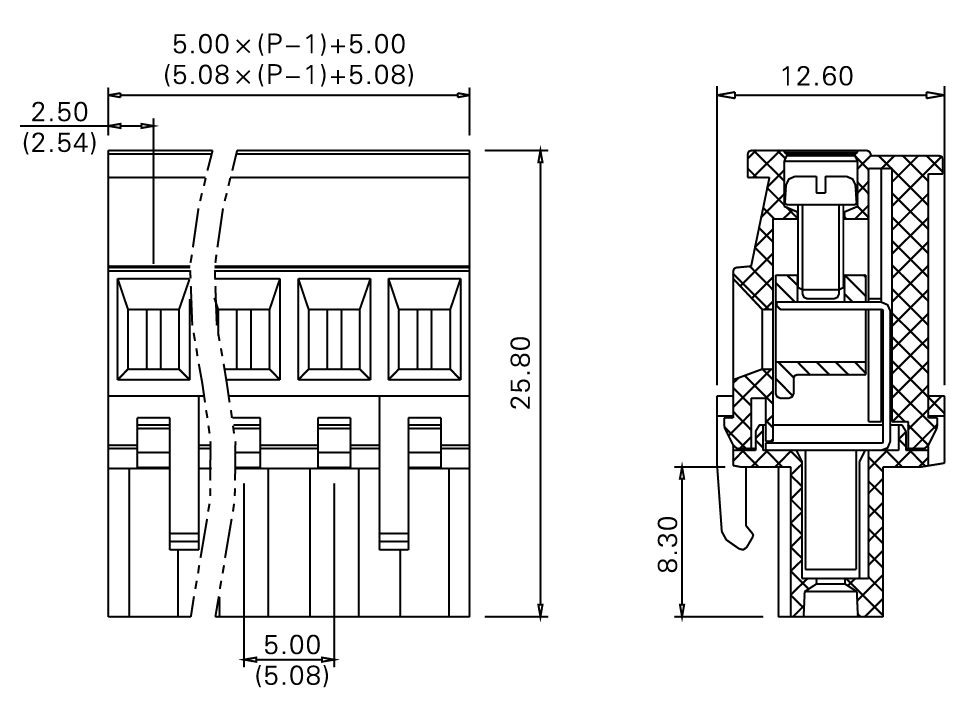

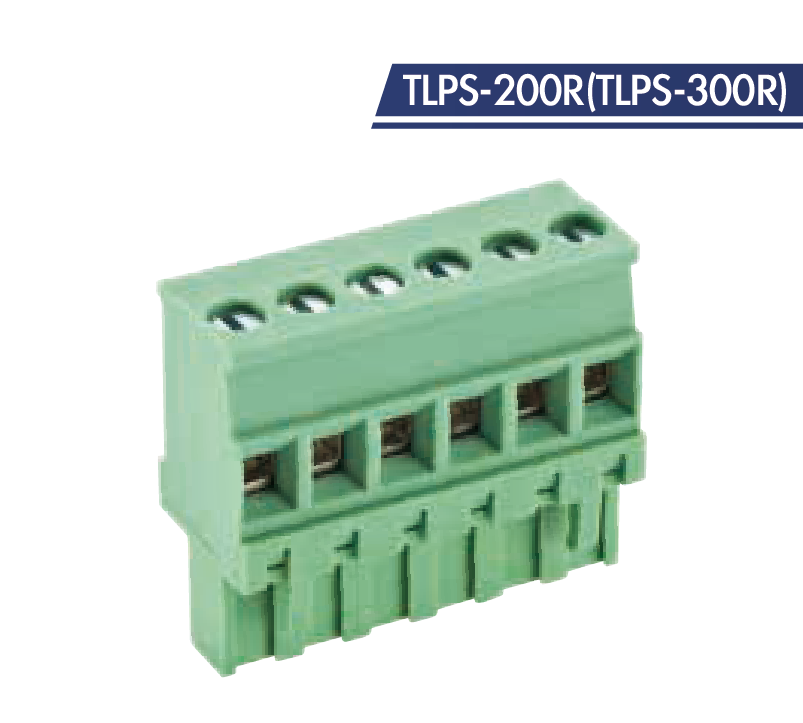

.png "TLPS-200R(TLPS-300R)") |
||
-2.png "TLPS-200R(TLPS-300R)-2") |
||
| Technical data | ||
| Pitch | 5.00mm(5.08mm) | |
| Approval | |
|
| Rated voltage | 300V | 320V |
| Rated current | 16A | 20A |
| Wire range | 30-12AWG | 0.2-2.5mm2 sol/str 4mm2 sol |
| Screw | M3 | |
| Part Number | ||
| Poles | Model | |
| 02 | TLPS-200R-02P (TLPS-300R-02P) |
|
| : | : | |
| 24 | TLPS-200R-24P (TLPS-300R-24P) |
|
