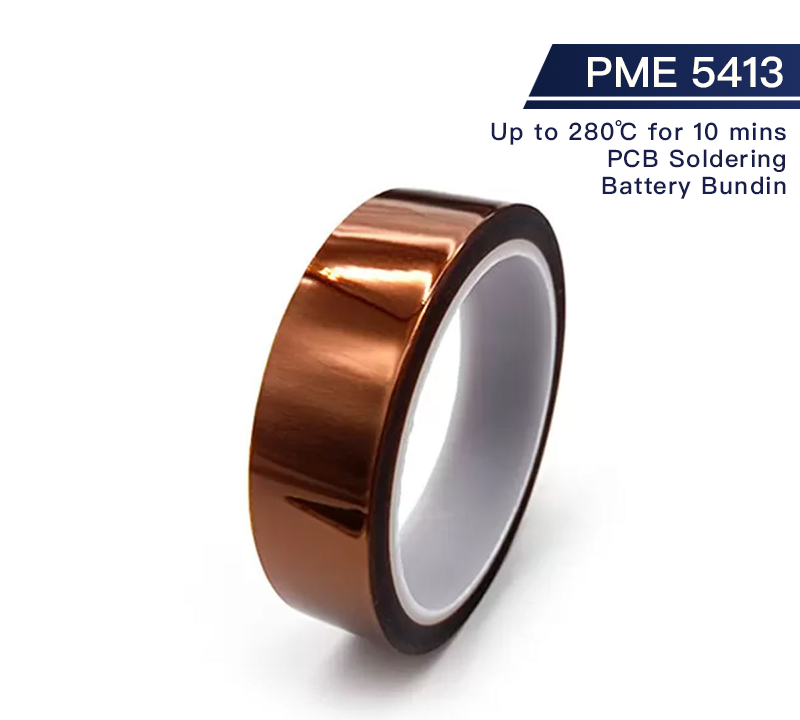

Polyimide Film Tape
- PME 5413 is polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications.
- Mask for printed circuit boards during wave solder or solder dip process.
- Masking contacts during spray painting, powder coating & solder coating.
- Applicable for bundling of transformer, motor, battery & electronic components for insulation purpose.
Features
- Electrical insulation
- Flame retardant, chemical and radiation resistant
- Resistant high temperature up to 280℃ for 10 minutes.
- Excellent tensile strength & Elongation.
- RoHS Compliant.
Typical Physical Properties and Performance Characteristics
|
Item |
Typical Value |
|
|
Imperial |
Metric |
|
|
Backing |
1.0mil |
0.025mm |
|
Total Thickness |
2.2mil |
0.055±0.005mm |
|
Tack |
/ |
≥26(J.DOW/#) |
|
Adhesion to Steel |
0.91～1.37lbs/in |
4～6N/25mm |
|
Tensile Strength |
≥20lbs/in |
≥3.5(KN/M) |
|
Elongation |
≥45% |
≥45% |
|
Dielectric Strength |
>4,000V |
>4,000V |
|
Maximum Operating Temperature |
536℉ |
280℃ |
Product Construction/Material Description
|
Part No |
Description |
Length/m |
Width/mm |
|
PME54130333 |
Polyimide Film Tape |
33 |
3 |
|
PME54130433 |
Polyimide Film Tape |
33 |
4 |
|
PME54130533 |
Polyimide Film Tape |
33 |
5 |
|
PME54130733 |
Polyimide Film Tape |
33 |
7 |
|
PME54130933 |
Polyimide Film Tape |
33 |
9 |
|
PME54131033 |
Polyimide Film Tape |
33 |
10 |
|
PME54131233 |
Polyimide Film Tape |
33 |
12 |
|
PME54131433 |
Polyimide Film Tape |
33 |
14 |
|
PME54131533 |
Polyimide Film Tape |
33 |
15 |
|
PME54131733 |
Polyimide Film Tape |
33 |
17 |
|
PME54131933 |
Polyimide Film Tape |
33 |
19 |
|
PME54132033 |
Polyimide Film Tape |
33 |
20 |
|
PME54132233 |
Polyimide Film Tape |
33 |
22 |
|
PME54132533 |
Polyimide Film Tape |
33 |
25 |
|
PME54133033 |
Polyimide Film Tape |
33 |
30 |
|
PME54134033 |
Polyimide Film Tape |
33 |
40 |
|
PME54135033 |
Polyimide Film Tape |
33 |
50 |
